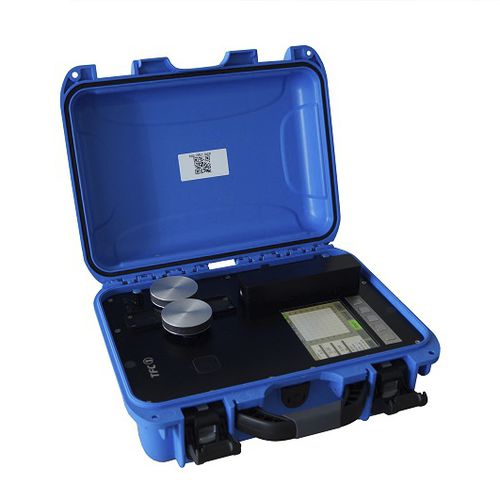

The THALER-Fiber Control (TFC 1) is the latest product on the market for blowing-in systems. The TFC 1 automatically controls the process while blowing in. It can be used regardless of which brand of blowing-in system is used.

All main data are entered via smartphone / tablet, e.g. information about project, compressor or used gliding means. The pipe- and cable parameters can be selected by dropdown-menu. The data transfer from smartphone / tablet to TFC 1 is given by Wi-Fi connection. An internal memory saves all input data which can be used for the next project – same information does not have to be entered again.

A detailed graph shows actual data of blowing-in process: cable length, which is already blown in, air pressure and cable speed. The same graph is also shown in the protocol. Additionally, a chart documents every meter which can be analysed if required.

Every protocol can be read as pdf-file on the internal memory via USB-port or on smartphone / tablet via Wi-Fi connection. With an internet enabled smartphone the protocols can directly be send as an E-Mail.

The TFC 1 is approved by German Telecom - ZTV TKNetz 40.

Technical Data:
• Available: with one or two compressed air connectors
• Cable diameter: 1 - 16 mm (other sizes on request)
• Powered by battery or direct supply
• Weight: 5,8 kg
• Measurements (LxWxH): 310 x 400 x 170 mm

Parameter Name	Parameter Value
Display	with screen
Applications	for blowing-in systems
Other characteristics	battery-powered
