About

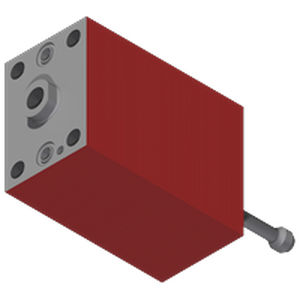

Bloc cylinder
IN and OUT power supply always close to the keyway
Operating pressure 300 bar
Bore 25 to 125 mm
Seals Iso
Double seal on rod
Race on request
Magnetic detection option Ø 32 to Ø 80
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
hydraulic
|
| Configuration |
single-acting
|
| Norms |
ISO
|
| Other characteristics |
block
|
| Stroke (mm) |
5 - 70
|
| Force (N) |
261 - 36816
|
| Speed (mm/s) |
500 - 500
|
