BLDC motor t-Rex 3206 I-65-86-L36 S2

BLDC motor t-Rex 3206 I-65-86-L36 S2

BLDC motor t-Rex 3206 I-65-86-L36 S2

About

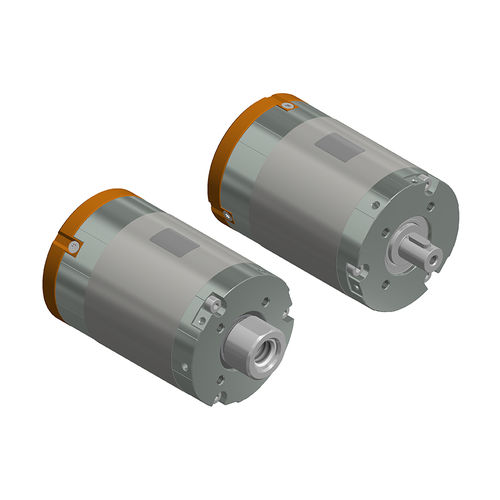

BLDC motor t-Rex 3206 I-65-86-L36 S2 (long version, focus torque)

14-pole BLDC motor with high-performance neodymium magnets and three digital Hall sensors to detect the rotor position. The electrical connections are designed as a plug-in system. Additional power electronics are required to operate the motor. The design of the motor with a hollow shaft allows the cables to run through the motor or output on both sides.

Special features

Designed with focus on max. torque
Enormous performance density – 3 times stronger than motors of comparable size
High overload resistance
Ideally suited as direct drive, or generator for gearless applications
Special winding upon request
Design and manufacture of motor to specified operating point is possible



PARAMETERS

Parameter Name Parameter Value
AC/DC
DC
Type
BLDC
Voltage (V)
24 - 48
Configuration
permanent magnet
Number of poles
multipole
Power (W)
  • 106 - 106
  • 167 - 167
  • 232 - 232
Torque (Nm)
1.9 - 1.9
Rotational speed (rpm)
535 - 535
Diameter (mm)
65 - 65
