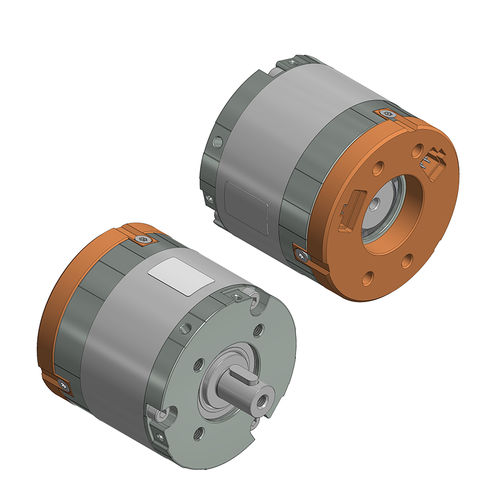

BLDC motor t-Rex 3206 I-65-51-L36 S2 (short version, focus rotational speed)
14-pole BLDC motor with high-performance neodymium magnets and three digital Hall sensors to detect the rotor position. The electrical connections are designed as a plug-in system. Additional power electronics are required to operate the motor. Motor design with a hollow shaft is also available upon request. This allows the cables to run through the motor or the implementation of output on both sides.
Special features
Designed with focus on rotational speed
Enormous performance density – 3 times stronger than motors of comparable size
High overload resistance
Special winding upon request
Design and manufacture of motor to specified operating point is possible
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
DC
|
| Type |
BLDC
|
| Voltage (V) |
24 - 48
|
| Configuration |
|
| Number of poles |
multipole
|
| Power (W) |
|
| Torque (Nm) |
0.6 - 0.6
|
| Rotational speed (rpm) |
2139 - 2139
|
| Diameter (mm) |
65 - 65
|
