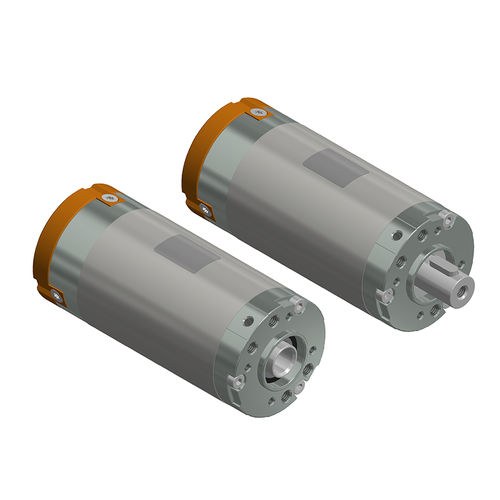

BLDC motor t-Rex 3200 I-44-89-L41 S2 (long version, focus torque)
14-pole BLDC motor with high-performance neodymium magnets and three digital Hall sensors to detect the rotor position. The electrical connections are designed as a plug-in system. Additional power electronics are required to operate the motor. The design of the motor with a hollow shaft allows the cables to run through the motor or output on both sides.
Special features
Designed with focus on max. torque
Enormous performance density – 3 times stronger than motors of comparable size
High overload resistance
Ideally suited as direct drive, or generator for gearless applications
Special winding upon request
Design and manufacture of motor to specified operating point is possible
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
DC
|
| Type |
BLDC
|
| Voltage (V) |
24 - 48
|
| Configuration |
|
| Number of poles |
multipole
|
| Power (W) |
|
| Torque (Nm) |
0.5 - 0.5
|
| Rotational speed (rpm) |
812 - 812
|
| Diameter (mm) |
44 - 44
|
