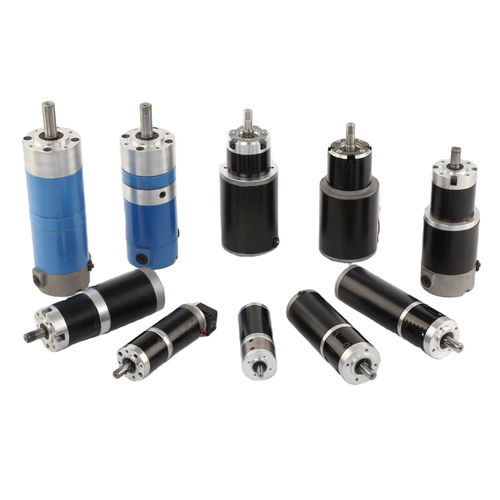

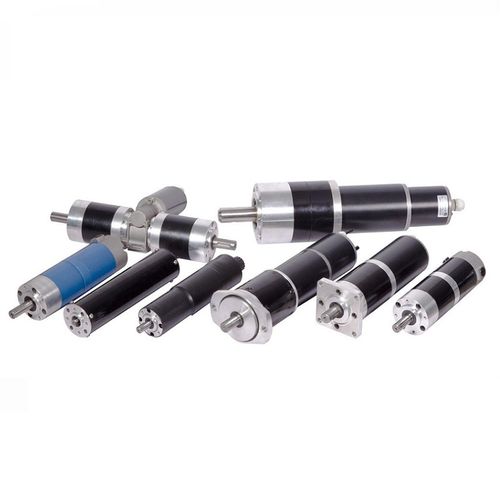

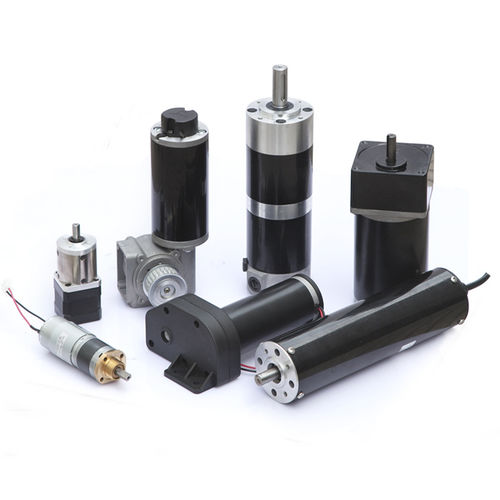

DYD DC Brushless and Brushed Planetary Gear Motor Series
BLDC gear motors; BL DC gear motors; DC brushed motors; DC gearmotors; planetary geared DC motor/DC geared motor/DC motor with planetary gearbox/brushless DC gear motor/ BLDC geared motor/BL DC gearmotor
Planetary Gearbox outer diameter: 16 ~ 120mm

Matching Motor Type:
1) Brushed/Brushless DC Planetary Gear Motor
Brushed DC Motor Frame Types (OD): 16ZY, 22ZY, 24ZY, 28ZY, 31ZY,35ZY, 36ZY, 38ZY, 40ZY, 42ZY, 45ZY, 50ZY, 52ZY, 55ZY, 60ZY, 63ZY, 71ZY, 76ZY, 80ZY, 84ZY, 90ZY, 96ZY, 104ZY, 110ZYT, 118ZY, 130ZYT, 160ZYT, 170ZY
Brushless DC Motor Frame Types (OD): 22ZWN, 28ZWN,28ZWNP, 33ZWN, 36ZWNP, 36ZWN, 42ZWNP, 42ZWN, 42BL, 57ZWN,86ZWN

Gear Motor General Performance:
Voltage: 12VDC ~ 400VDC
Motor Rated Speed: 600 ~ 17000rpm
Gear Motor Rated Speed: 1 ~ 999rpm
Motor Output power: 1W ~ 4500W
Gear Motor Rated Torque: up to 1000N.m
Gear Ratio Range: 1:3 ~ 1:3000
Optional Components: Magnetic / Optical Encoder; Power-on / Power-off Brake; Connector; External/Built-in Driver Available
Customized IP Class: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68
Customized Technical Specs. & Dimensions Available

2) Hybrid Planetary Gear Stepper Motor
Stepper Motor Frame Types (OD): 20STH, 28STH, 35STH, 42STH, 57STH, 60STH, 86STH
General Performance:
Voltage: 2.7VDC ~ 12VDC
StepAngle: 0.9°, 1.8°
Gearbox Torque: 0.6N.m ~ 500N.m
Ratio: 1:3.71~1:515
Ambient Temperature: -20℃ ~+50℃
Available Customized IP Class: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68
Optional Components: Magnetic/Optical Encoder; Power-on/ Power-off Brake; Connector;
Customized shaft & Flange Cover Available

Parameter Name	Parameter Value
Motor type	BLDC
Type	planetary spur
Shaft orientation	coaxial parallel-shaft
Shaft configuration	solid-shaft
Power (W)	100 - 500 10 - 50 50 - 100 0 - 10 500 - 1000
Voltage (V)	110 - 6
Torque (Nm)	1 - 5 5 - 10 10 - 20 20 - 50 0.5 - 1 50 - 100 0.1 - 0.2 0 - 0.1 100 - 200
Performance	high-torque high-power high-efficiency high-performance low-noise precision high load capacity
Product applications	for medical equipment industrial for automation for industrial applications for heavy-duty applications for the chemical industry for pharmaceutical applications for mixers for vehicles for the food industry for pumps for lifting applications for conveyors for machines for solar tracker for tracks for the packaging industry cleaning machine for hygienic applications
Certifications	CE ISO 9001 ISO 14001
Other characteristics	compact low-noise high-torque IP65 solid-shaft custom IP54 high load capacity with encoder shaft-mounted maintenance-free micro precision flange-mount foot-mounted IP55 IP68
Operating temperature (°C)	-40 - 120
