About

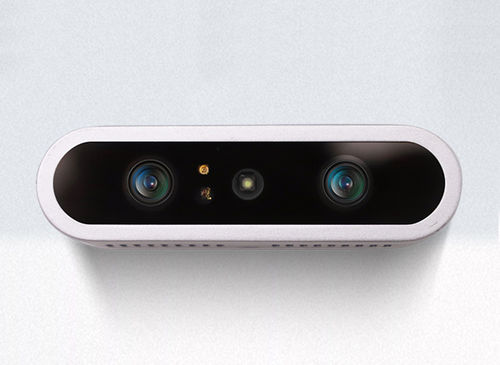

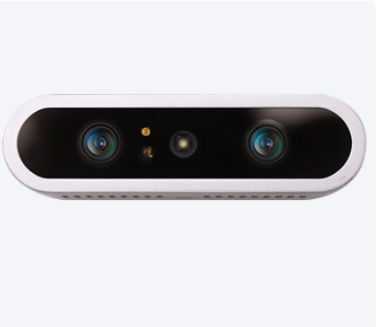

DaBai DCW is a binocular structured light camera with self-developed ASIC chips. It has lower computing power requirements, higher overall performance, high resolution, high frame rate, high precision depth data output and large field angle, allowing obstacle avoidance in a larger field of vision. Its depth image resolution can reach up to 1920 × 1080 @ 5/10 fps, and its average power consumption is less than 1.2 W, enabling robots to achieve perception, obstacle avoidance, navigation and other functions.
Working distance
0.2m-2.5m
Depth FOV
H79° V62° D91° ± 3° Infrared FOV: H79° V62° D91° ± 3°
Infrared FOV
16:9 H86°V55°D93.5°±3°
Color FOV
4:3： H64°V55°
Relative accuracy
1.0%@1000mm 1.1%@2000mm
Size
89.82x25.10x25.10mm
Interface type
USB2.0
Power supply
5V
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for robotics
|
| Technology |
digital
|
| Spectrum |
infrared
|
| Other characteristics |
binocular
|
