Spiral Bevel Gearboxes

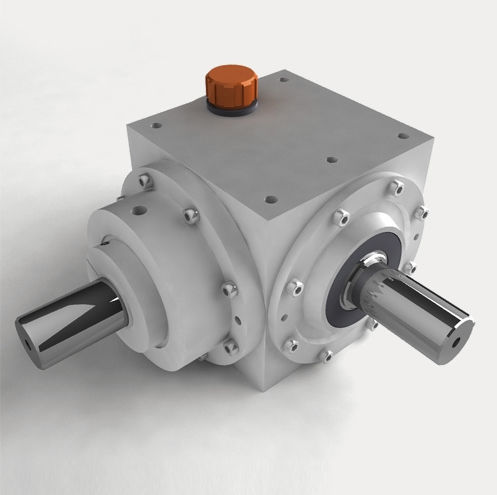

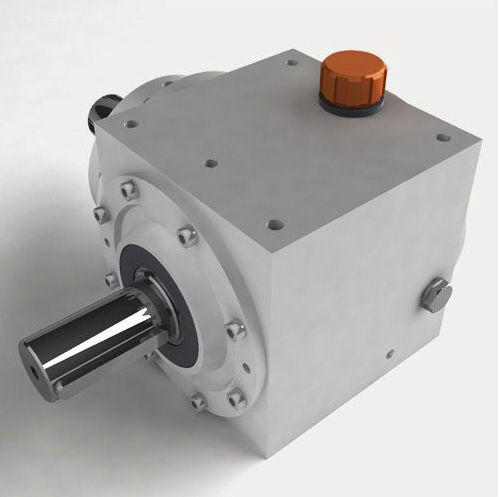

The Z-Series spiral bevel gearbox product line offers 7 different sizes, 6 model types, and 9 ratios, with various input-output arrangements including solid shaft or hollow bore options, as well as universal mounting capability.
All of these options are made possible by a modular design concept that starts with a cubic housing.
The Z-Series is an extremely versatile product line, meeting virtually all of the technical offices requests.
Additional designs:
ZT Series Used as multipliers (Reduction ratios = 0.5 ; 0.67)
ZD Series Manual slide dog clutch, including a neutral.
ZI Series The same as ZD With manual forward neutral and reverse.
ZR Series Spiral bevel gearbox with reinforced hollow bore.
Features
9 Reduction ratios: 0.8; 1; 1.25; 1.5; 2; 3; 4; 5; 6
7 Sizes Extremely versatile (solid shaft, hollow bore, splined or keyed shafts, motor flanges)
Spiral bevel gears (HPG-S on request)
Low backlash (as low as 3 arcmin on request)
Efficiency of 95 – 98 % Max rotation speed up to 6000 RPM
ATEX compatible design (ATEX versions on request)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Applications |
shaft
|
| Other characteristics |
|
| Rotational speed (rpm) |
8 - 5500
|
