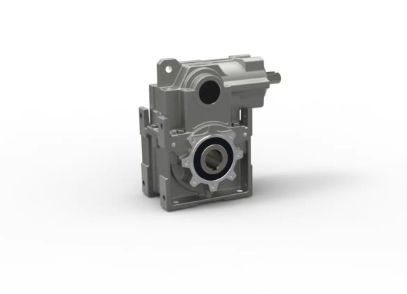

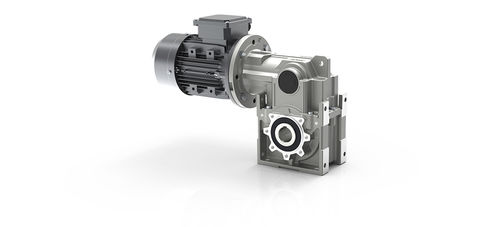

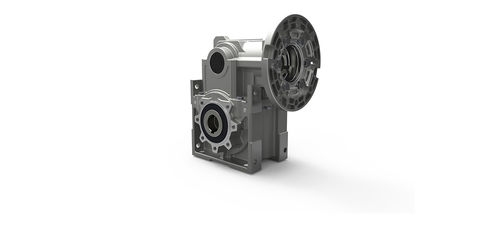

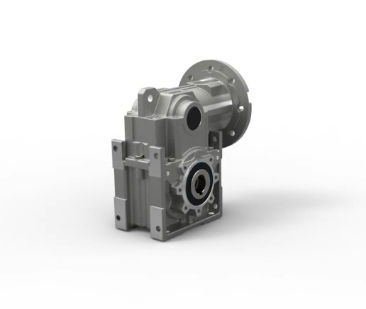

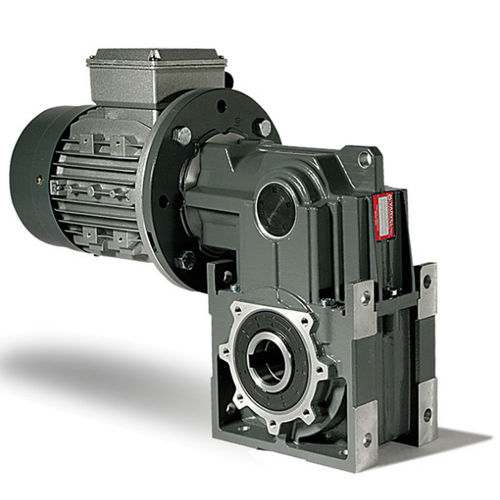

The RV Series of 3-stage bevel helical gearboxes stand out for their high efficiency and for a modular structure in kits that can be assembled with extreme rapidity and simplicity.

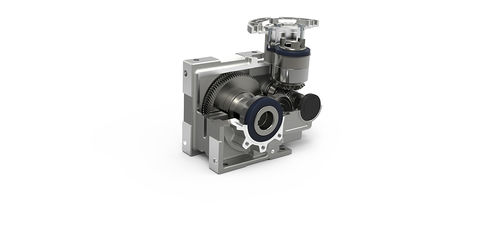

Main Components
• Input and output oil seals in NBR
• Housing and covers in die cast aluminium (till size 3) and grey cast iron (sizes 4, 5 and 6)
• Bearings with ball or conical roller
• Input flanges in die cast aluminium
• Motor flexible coupling
• Gears in cemented and hardened alloy steel
• Synthetic oil for lifetime lubrication of the gears
• RCA oil seal in NBR

Plus
• High efficiency
• Low maintenance and management costs
• Modular concept
• Extended lifetime with excellent reliability
• Easy installation and maintenance
• Long life lubrication

Special Solutions
For Application Sectors
• Silicone, Viton or special seals for high/low temperatures and food & beverage sector
• Anodization for chemical and ship-building/marine sectors
• Special lubricants for high/low temperatures and food & beverage sector
• Non-standard breather plugs for high/low temperatures
• Special paint finishes for chemical, ship-building/marine and food & beverage sector
• ATEX version for potentially explosive environments

For NEMA and servo motors
• Flanges and couplings for servomotors
• Output holes in inches
• Input couplings for NEMA motors

Parameter Name	Parameter Value
Type	bevel helical
Shaft orientation	right angle
Torque (Nm)	200 - 500 100 - 200 1000 - 2000 2000 - 5000
Shaft configuration	hollow-shaft
Number of stages	three-stage
Applications	building for food industry machinery
Other characteristics	modular aluminum for machine tools for automotive applications motor ATEX food
Rotational speed (rpm)	1400 - 1400
Power (W)	2700 - 40300
Gear ratio (unit)	6.3 - 315
