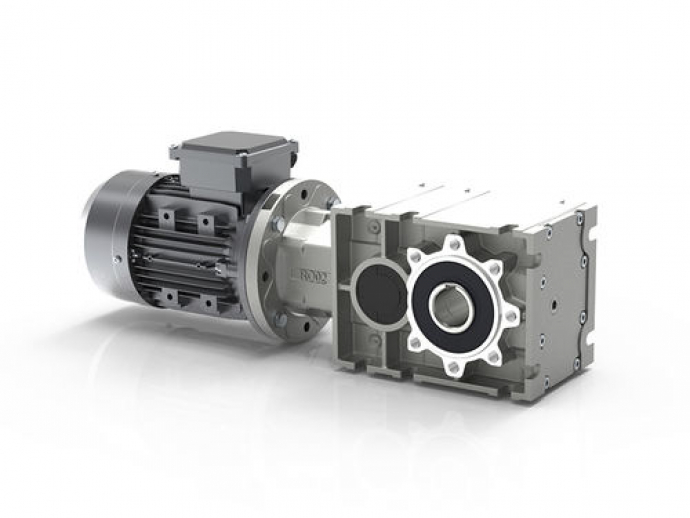

The RO2 Series of 2-stage bevel helical gearboxes have, in addition to their high efficiency, a monobloc housing for excellent torsional rigidity, stress resistance and reduced backlash.

Main Components
• Input and output oil seals in NBR
• Housing and covers in die cast aluminium
• Bearings with ball or conical roller
• Input flanges in die cast aluminium
• Motor flexible coupling
• Gears in cemented and hardened alloy steel
• Synthetic oil for lifetime lubrication of the gears
• RCA oil seal in NBR

Plus
• Excellent stress resistance
• High efficiency
• Low maintenance and management costs
• Extended lifetime with excellent reliability
• Long life lubrication
• Silent running

Special Solutions
For Application Sectors
• Silicone, Viton or special seals for high/low temperatures and food & beverage sector
• Anodization for chemical and ship-building/marine sectors
• Special lubricants for high/low temperatures and food & beverage sector
• Non-standard breather plugs for high/low temperatures
• Special paint finishes for chemical, ship-building/marine and food & beverage sector
• ATEX version for potentially explosive environments

For Nema and servo motors
• Flanges and couplings for servomotors
• Output holes in inches
• Input couplings for NEMA motors

Parameter Name	Parameter Value
Type	bevel helical
Shaft orientation	right angle
Torque (Nm)	200 - 500 100 - 200 500 - 1000
Shaft configuration	hollow-shaft
Number of stages	two-stage
Applications	for the chemical industry building for food industry machinery
Other characteristics	linear motor ATEX food
Rotational speed (rpm)	1400 - 1400
Power (W)	3200 - 3200 4200 - 4200 6000 - 6000 12000 - 12000
Gear ratio (unit)	5 - 54.7
