The standard bevel gearbox PowerGear P-Version shows it’s strength in applications which depend on the following characteristics:

High torque at smaller to medium input speeds
Limited weight and smallest dimensions
Sturdy, reliable and maintenance-free design
Technical overview
- Sizes - 12 gearbox sizes from P54 to P450
- Configurations - L, H, FL, FH
- Ratios - from i = 1:1 to 5:1
- Shaft arrangement
WA 1, WA 3, WA 13
- Input speed n1max - up to 7500 min-1
- Motor mounting
direct mounting with hollow shaft/flange
Configuration FL
Input with hollow shaft and flange. Output with
solid shaft on both sides or on one side.
PowerGear FL
Configuration L
Input and output with solid shaft. Output on
both sides or on one side.
PowerGear L

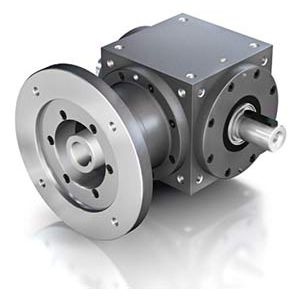

Configuration FH
Input with hollow shaft and flange. Output with
hollow shaft and feather key groove.
PowerGear FH
Configuration H
Input with solid shaft. Output with hollow shaft
and feather key groove.

Parameter Name	Parameter Value
Type	bevel
Shaft orientation	right angle
Torque (Nm)	200 - 500 100 - 200 500 - 1000 1000 - 2000 20 - 50 50 - 100 2000 - 5000
Shaft configuration	hollow-shaft
Performance	high-performance high-torque maintenance-free
Applications	shaft
Other characteristics	flange motor
Rotational speed (rpm)	650 - 7500
Power (W)	1600 - 38400
