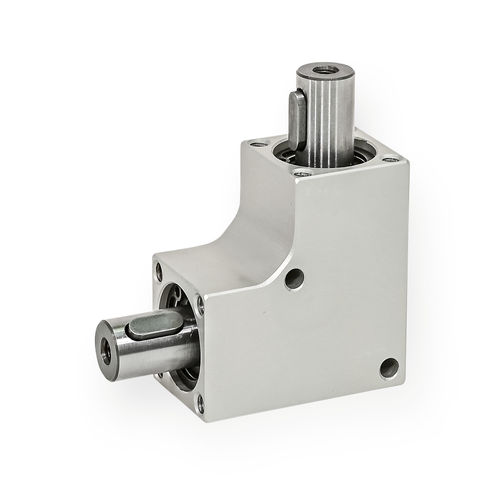

Bevel gear boxes GN 3971 can transmit high torque despite their very compact dimensions. They can readily be used for a multitude of applications, such as height adjustments or to change the direction of shaft rotation.

The numerous fastening holes allow for simple mounting in any orientation or position. The parallel keys can take any angular positions.

Parameter Name	Parameter Value
Type	bevel
Shaft orientation	right angle
Torque (Nm)	5 - 10 1 - 5 0.1 - 0.2 0.2 - 0.5 0.5 - 1
Shaft configuration	solid-shaft
Performance	high-torque maintenance-free
Applications	transmission for machinery for the metallurgical industry for agitators machine for electrical drives for test benches for food industry machinery packaging machine for construction vehicles
Other characteristics	compact aluminum
Rotational speed (rpm)	100 - 1000
Backlash (°)	2.5 - 3.5
Gear ratio (unit)	1 - 1
