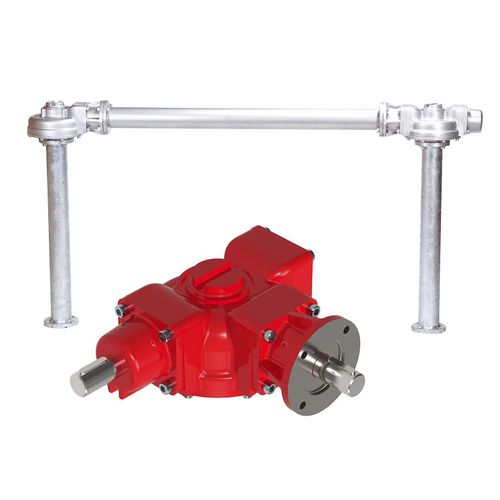

Bevel gearbox DSB

Bevel gearbox DSB

Bevel gearbox DSB

About


Complete range of multi-turn bevel gearboxes with two shafts for use with dual stem sluice gates and penstocks.

Torque range up to 8,135 Nm (6,000 lbf.ft)
Thrust range up to 1,320 kN (296,750 lbf)
13 sizes
Ratios from 1:1 to 120:1
Ductile iron baseplates
Comprehensive gear ratios combined with a selection of spur input reducers
Pinions mounted on ball bearings
IP67
Options for all types of environment , including IP68
Optional position indications
Optional input shafts available at 90º & 180º to each other
90° & 180° DSB available for IB4 to IB9
180° DSB available for IB10 to IB14



PARAMETERS

Parameter Name Parameter Value
Type
bevel
Shaft orientation
right angle
Shaft configuration
dual-shaft
Applications
for valve actuators
Other characteristics
multi-turn
