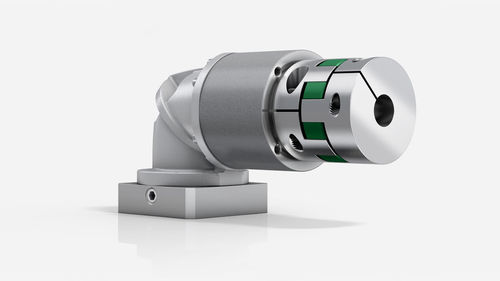

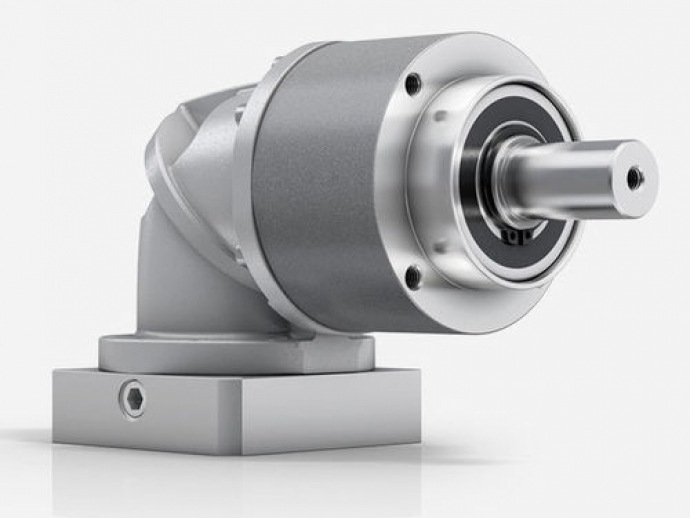

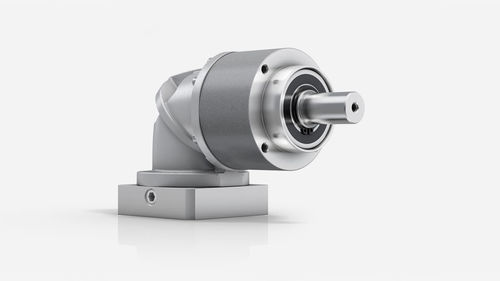

Economically around the corner. The CP bevel gearbox with output shaft of the alpha Basic Line is specially designed for applications with medium requirements for positioning accuracy. The extremely compact bevel gear stage enables use in applications with space constraints.

Parameter Name	Parameter Value
Type	bevel
Shaft orientation	right angle
Torque (Nm)	100 - 200 500 - 1000 50 - 100 20 - 50 10 - 20
Applications	shaft
Other characteristics	compact
Rotational speed (rpm)	5000 - 5000
Backlash (°)	0.22 - 0.22
Gear ratio (unit)	3 - 100
