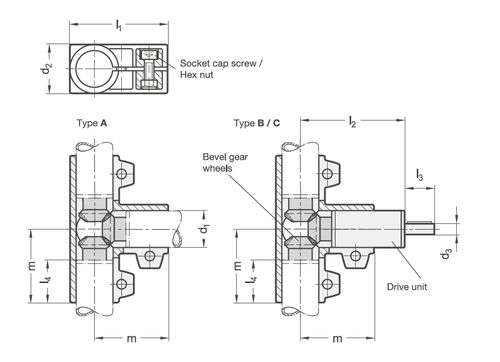

T-angle gears transmit rotational
movements between multiple linear, drive or
transfer units. The input and output sides are
offset by 90°, and the rotational axes have
a common point of intersection.
The angle gear is clamped radially to the nominal
diameter of a linear unit using the slitted clamping
point. The bevel gear wheels are fixed in place on
the shaft journal using parallel keys and grub
screws. Removing the plastic caps offers good
access, making it easier to adjust the engagement
of the bevel gear wheels.
T-angle gears can be ordered with various features
for different applications based on the types listed
in the table. This makes it possible to combine
various linear, drive or transfer units together.

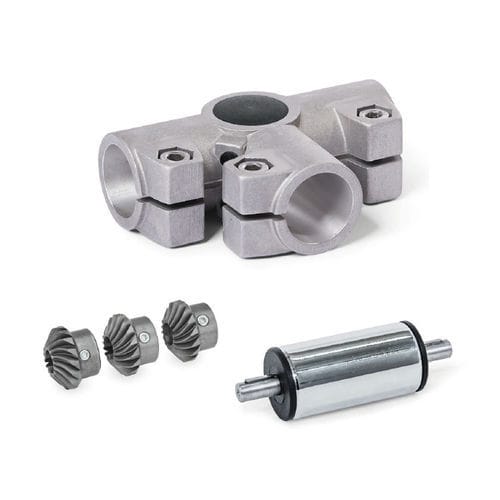

The housing is made of die-cast aluminum, while
selectively hardened steel is used for the bevel
gear wheels. The drive unit is made of chromeplated
steel, and the tube stoppers are made of
plastic.
RoHS-compliant product

Parameter Name	Parameter Value
Type	bevel
Teeth	spiral
Other characteristics	linear shaft steel aluminum
