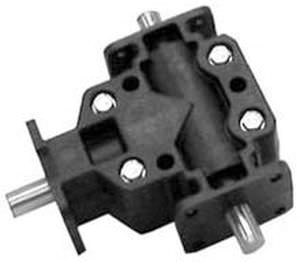

Dimensions: right angle miter gear drive is 3-21/32" x 3-15/16" x 1-1/4" deep
40% glass filled polypropylene
Weight: 10 ounces
Shafts: Ground high-tensile steel. Any shaft may be used as a drive.
Gears: Hardened coniflex straight miter gears
Bearings: Hardened steel ball bearings, permanent lubrication
Mounting: Three shaft mounting positions provide versatility in application
Versaitle: Three shaft connections are provided for versatility in application
RAB-1 may be operated CW, CCW or BACK driven
RAB-1 is rated at 1/3 HP at 1800 RPM. Maximum speed is 3000 RPM
Benefits and Cost Savings
Longer service life
Less wear
Greater tooth-to-tooth contact
Quieter operation
The most efficient power transfer design under rated load conditions
Custom Options
Stainlss steel shaft (Please specify series stainless needed)
Longer shafts lengths on input and output
2:1 Ratio

Parameter Name	Parameter Value
Type	bevel
Shaft orientation	right angle
Torque (Nm)	5 - 10
Applications	transmission
Rotational speed (rpm)	1800 - 3000
