Built in 5 sizes with three types of out-
put shaft: hollow, projecting or double-
extended. Moreover, an additional out-
put shaft can be installed opposite to
the input shaft.

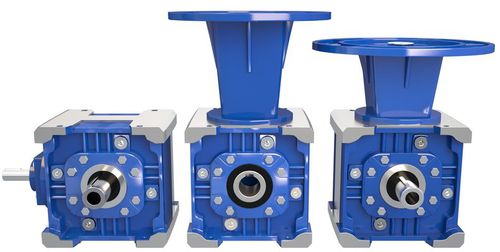

Three input types are available : with
projecting input shaft, with pre-engi-
neered motor coupling (bell and joint)
and pre-engineered COMPACT motor
coupling.
Gear unit body in engineering cast iron,
EN GJL 200 UNI EN 1561 ribbed inter-
nally and externally to guarantee rigid-
ity and machined on all surfaces for
easy positioning. The single lubrication
chamber guarantees improved heat
dissipation and better lubrication of all
the internal components.

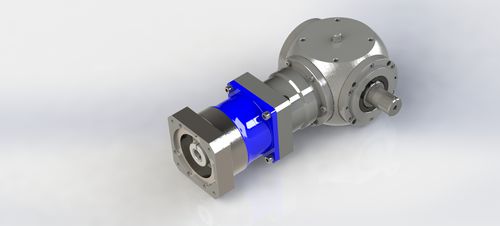

The mechanism of these gearboxes
consists of tow GLEASON spiral bevel
gears with precision lapped profile.
16CrNi4 or 18NiCrM05 made of steel.
The use of high quality bearings on all
the axis ensures long life to the gearbox
and allows very high radial and axial
loads.

Parameter Name	Parameter Value
Type	bevel
Shaft orientation	right angle
Torque (Nm)	200 - 500
Performance	precision
Other characteristics	compact for motor coupling
Rotational speed (rpm)	142 - 3000
Power (W)	30 - 90000
