Maximum reliability in the most arduous conditions

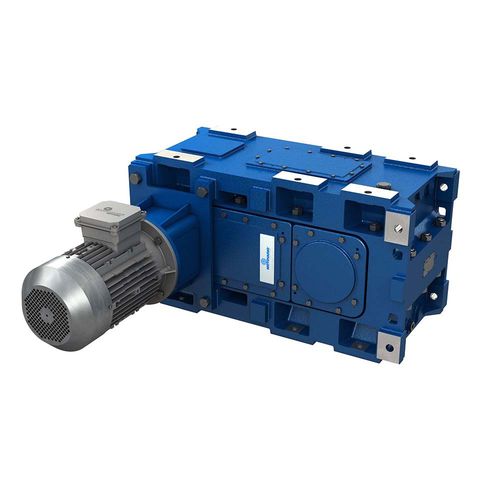

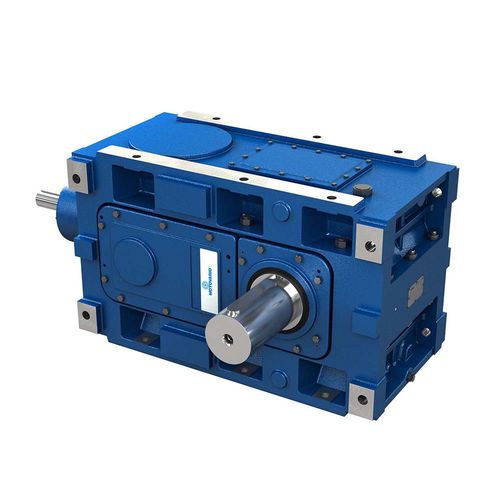

The Motovario PBH series consists of parallel helical and bevel-helical gear reducers up to 4 reduction stages, conceived to ensure the maximum reliability under the most arduous conditions such as in case of applications with high inertias, overloads, sudden peaks and significant external loads.
Range features enhance the possibility of a high customisation level, for customised solutions satisfying the specifications of the most demanding users, and meeting the requirements with a high technological content.

Characteristics
Sizes: 180, 200, 225, 250, 280, 320, 355
Train of gears: 1, 2, 3 and 4 stages for parallel helical reducers - 2, 3 and 4 stages for bevel helical reducers.
Available input versions: P – with bell coupling, I – with male input shaft
Available output versions:
HC - Hollow low speed shaft with keyway ,
HL - Hollow low speed shaft with shrink disk ,
HS - Splined hollow low speed shaft ,
CS - Cylindrical solid low speed shaft ,
SS - Splined solid low speed shaft ,
CD - Cylindrical double extended solid low speed shaft ,
SD - Splined double extended solid low speed shaft
Gears and pinions in 16CrMo4, 15NiCr13,17CrNiMo6 hardened and casehardened steel
Reduction ratios between 1,25 and 760
Cases in 200 UNI ISO 185 cast iron
Electrostatically paint with epoxy polyester powder, minimum dry thickness 80 microns. Blue color RAL 5010

Parameter Name	Parameter Value
Type	bevel helical cylindrical
Shaft orientation	right angle
Torque (Nm)	10000 - 10000
Applications	shaft
Other characteristics	double
Rotational speed (rpm)	1500 - 1500
Gear ratio (unit)	2.04 - 604
