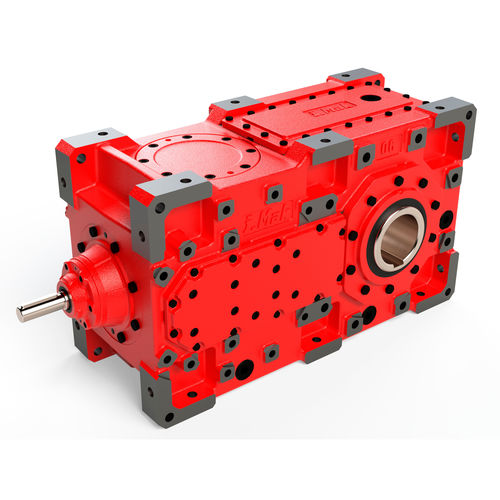

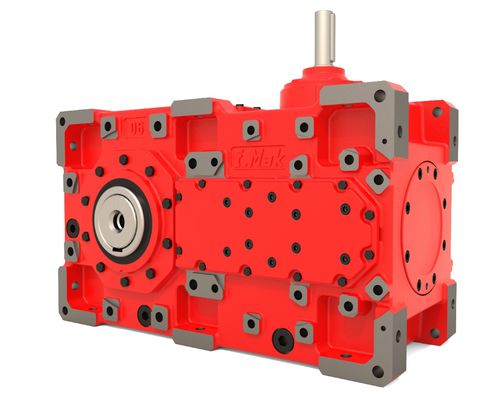

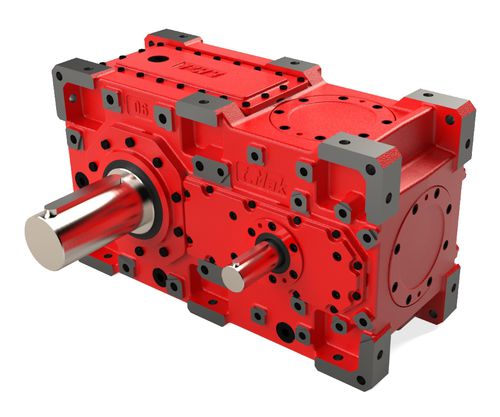

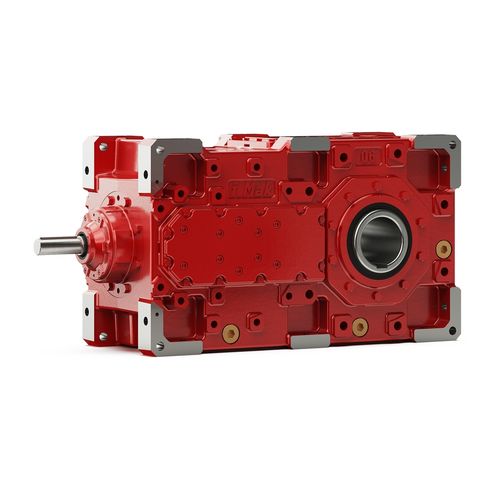

Discover the new A Series for heavy applications. Designed to offer higher performance in a compact design, the A Series is featuring helical and bevel gears.

The new monobloc series is based on a rigid and compact housing to fit on a maximum of applications and environment. The wide range of options and technical features maximise the type of configurations to make it the best solution for every specific field of application.

Products advantages:
• Compact monobloc iron case housing
• Wide range of input options
• Flexible and easy mounting
• Large range of cooling options

Features and options:
• Standard IEC input
• Backstop and brake features
• Extruder output with extra cooling
• 4 types of cooling
• Large range of cooling options
• Shrink disk

Parameter Name	Parameter Value
Type	bevel helical
Shaft orientation	coaxial parallel-shaft right angle
Torque (Nm)	10000 - 10000
Shaft configuration	hollow-shaft solid-shaft
Performance	high-precision high-performance low-noise high-torque high-power high-rigidity high-efficiency
Applications	for crane for belt conveyors
Other characteristics	industrial compact custom vertical for concrete mixers IEC B14 for the crane and lifting industry for the sugar industry ATEX
Rotational speed (rpm)	6 - 511
Power (W)	400000 - 400000
