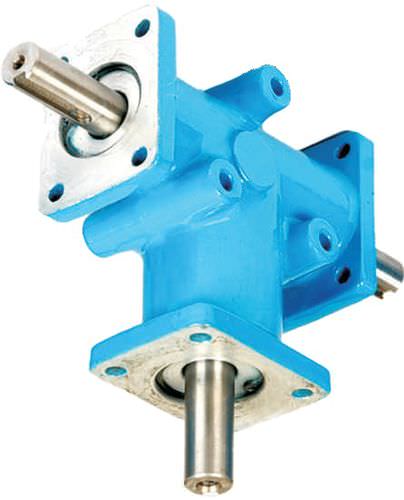

Bevel Gearbox Product Description
Cubical form housing for symmetry.
Gear ratios 1:1, 1.5:1 and 2:1.
8 different sizes for maximum output torque ranging from 17 Nm to 3550 Nm.
Fully machined with tapped holes for universal mounting, thus 6 possible mounting positions.
1 input with 1,2,or 3 outputs, hollow outputs.
motor flange for direct mounting of motors (up to FG55).
Either direction of rotation.
Mounting base for fastening outside the Cubical form.
Efficiency 95-96 % depending upon Lubrication.
Oil or grease filling.
’O’ Rings /oil seals at all joints.
Tapered roller bearings for high radial & Axial load capacity, long life.
Spiral bevel gearbox (Gleason System) for FG60 & FG75.
Bevel Gearbox Materials of Construction
For 14000 & 30,000 lbs, Housing is made of closed grain cast-iron, for higher sizes, SG 500/7 material.
Screw made of Cr-Mo medium Carbon Steel, hardened and tempered for high core strength.
Nut made of aluminum bronze to British Standard grade AB2.
Bevel gearbox Case hardened.
Tapered roller bearings to carry heavy axial as well as radial loads.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
bevel
|
| Shaft orientation |
right angle
|
| Torque (Nm) |
2000 - 5000
|
| Applications |
for shaft
|
| Rotational speed (rpm) |
50 - 3000
|
