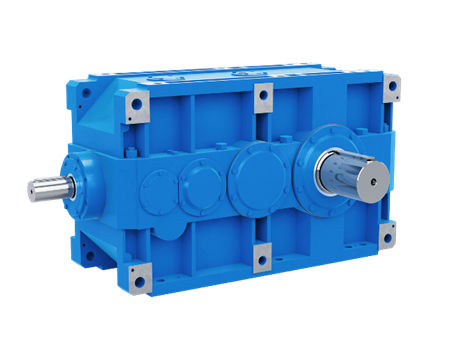

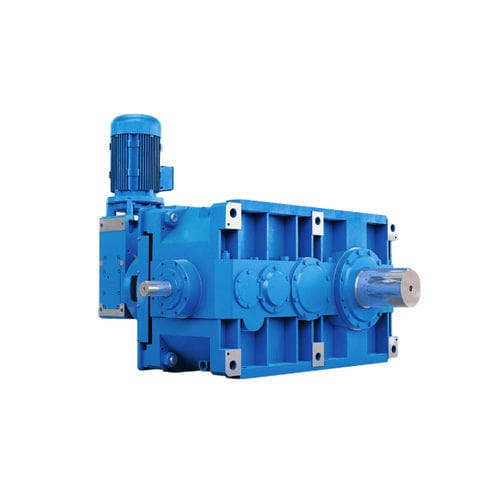

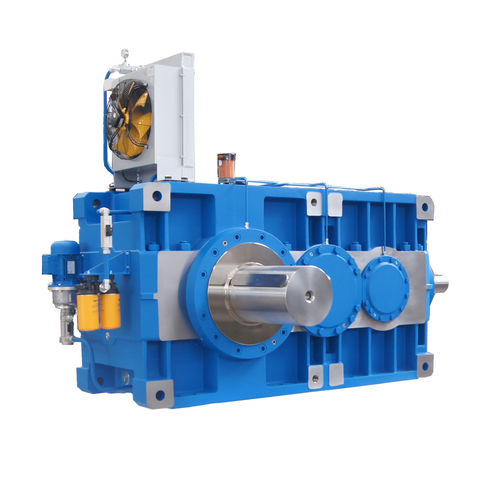

Large size gear reducers produced specifically conceived for granting highest reliability in heaviest application conditions. This series combines and exalts the traditional qualities of helical and bevel helical gear reducers (strength, efficiency, compactness, reliability) with advantages derived from modern design, manufacturing and operating criteria: multiple mounting and application ease, wide size range, service, economy.

FEATURES

Universal spheroidal cast iron housing suited for horizontal and vertical mounting having integral feet
Two-piece housing with stiffening ribs for high structural stiffness and high oil capacity
12 sizes, train of gears solutions and non-standard designs
Helical gear units with 2, 3 and 4 gear stages
Bevel helical gear units with 2, 3 and 4 gear stages
Case hardened and hardened gear pairs
Helical gear pairs with ground profile
GLEASON spiral bevel gear pairs with ground profile

BENEFITS

One of the widest torque range from a single supplier
Customized solutions on request starting from a standard modular design
Short delivery times
Optimized design for heavy industry applications

Parameter Name	Parameter Value
Type	bevel helical
Shaft orientation	right angle
Torque (Nm)	10000 - 10000
Number of stages	three-stage two-stage four-stage
Applications	for shaft
Other characteristics	universal
