About

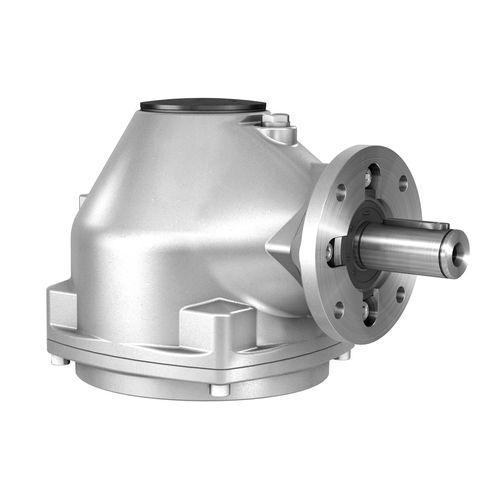

GK bevel gearboxes will be used if the operating direction is to be displaced by 90°.
Thus, the output torque can be increased many times.
Design features
Bevel gearboxes for torques up to 16,000 Nm

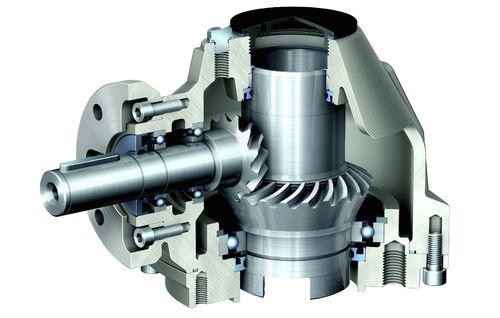

Low-noise and smooth operation with face-hobbed Palloid® gears
Lifetime according to EN 15714-2 Valve attachment according to EN ISO 5210
Suitable for manual and electrical operation
Ambient conditions
Suitable for ambient temperatures –40°C to +80°C
Top quality corrosion protection with AUMA powder coating
Stainless steel input shaft
IP68
Options
Square for input shaft (adapter)
With stem nut for use as screw jack
Stem protection tube Position and end position signalling during manual operation
ATEX approval
High and low temperature version
Functional safety: Up to SIL 2 in selected configurations
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
bevel
|
| Shaft orientation |
right angle
|
| Torque (Nm) |
10000 - 10000
|
| Performance |
high-torque
|
| Applications |
for valves
|
| Other characteristics |
multi-turn
|
