Features
Tough design -
This design is strong enough to provide the durability required for industrial machinery subjected to severe usage.

Compact and light weight -
This design has been optimized to be lightweight and compact.

A wide variety of options -
- Shaft layout: 6 varieties
- Models: 5 varieties
- Speed ratios: 3 varieties including 1:1, 1.5:1, 2:1
Select the optimal model for each application.
Applications -
- Agricultural machinery (Often used in working equipment for tractors in particular)
- Industrial machines (Used for changing shaft direction and splitting power)

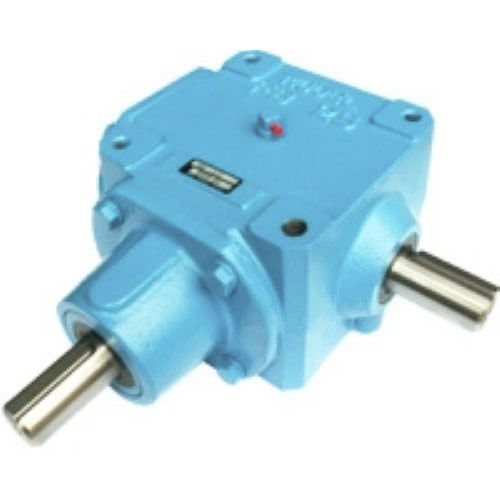

Structure
- This series uses a straight bevel gear. A special steel is heat treated, ensuring sufficient durability for high transmission capacity.
- The shaft is made of carbon steel or a specialty steel in order to provide sufficient durability versus bending force.
- A tapered roller bearing is used. Cantilever support is provided for shaft "A" and double-sided support is provided for shaft "B." The bearings receive the thrust and radial load of each shaft.
- The housing is manufactured from gray cast iron.
- This series uses oil bath lubrication.

Parameter Name	Parameter Value
Type	bevel straight-toothed
Shaft orientation	right angle
Torque (Nm)	20 - 50 50 - 100 5 - 10
Shaft configuration	solid-shaft
Applications	for machines for agricultural machinery
Other characteristics	compact industrial
Rotational speed (rpm)	10 - 1800
Power (W)	10 - 20000
