Monolithic iron body for heavy duty, bevel gears in the second stage, max 600Nm

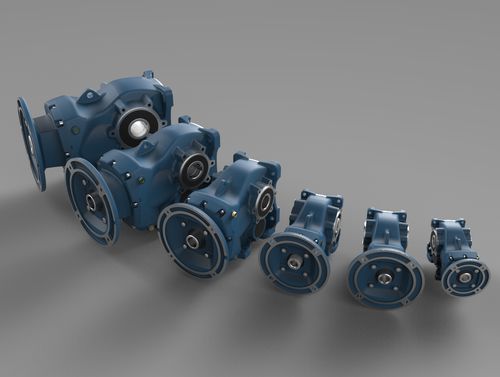

ENDURO is the new bevel gear reducer. In cast-iron monolithic body. 3 sizes, with a capacity of up to 600Nm. MADE IN ITALY

Uniquely contoured, rigid, precise, monobloc, cast iron Body, Base and flange ensure extreme robustness.

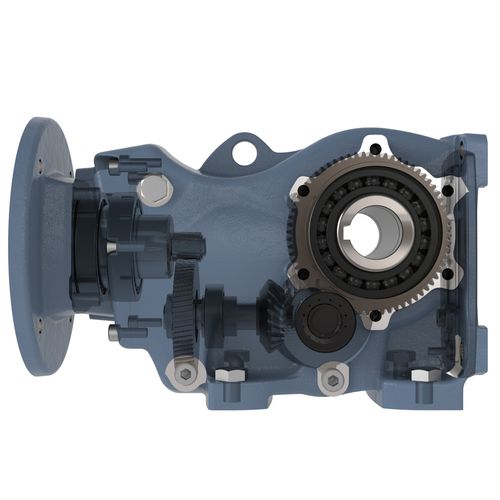

Bevel gears in the middle stage, to be more silent and, at the same time, reach a higher service factor

Unique construction of enduro makes it possible to mount any size in any position. this flexibility is achieved by: + ZZ autolubricating bearings on input and output shaft

+ mechanical parts locked in their positions by snap rings.this also ensures better absorbtion of axial thrust and prolongs the life of bearings

A modular design with detachable output flange and integral feet permits the easy and fast conversion between flange or foot mounting

iec flange and hollow shaft. choice of hollow input flanges permits direct mounting of any standard motor

5 interchangeable plugs, including one breather plug and a level plug please note that the vent plug also allows you to reduce the internal pressure on seals, and thus increases the efficiency of the gearbox


MADE IN ITALY

Parameter Name	Parameter Value
Type	bevel
Shaft orientation	right angle
Torque (Nm)	200 - 500 100 - 200 50 - 100 500 - 1000 1000 - 2000 1 - 5 2000 - 5000
Shaft configuration	hollow-shaft
Number of stages	three-stage
Performance	low-noise
Applications	transmission for shaft
Other characteristics	industrial modular flange
Rotational speed (rpm)	650 - 2890
Power (W)	130 - 30000
