About

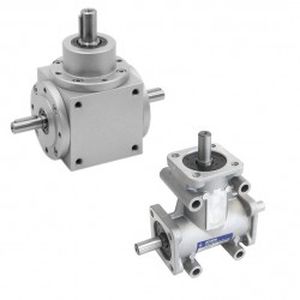

Our Standard Bevel Gear Units are suitable for all types of applications for rotating and positioning and can be used in every situation and orientation.
The heavy-duty version with three transmission shafts has centering diameters for precise alignment. This version has a robust aluminum or cast iron housing, hardened and lapped bevel gears with spiral teeth.
The light-duty version has a single-block housing made of aluminum and is machined on all sides. It si provided with adequate mounting holes for installation in any position desired. The hardened and lapped spiral bevel gears ensure good operation in both directions of rotation.
Technical Datas:
Heavy-duty and light version
5 ratios: 1; 1,5; 2; 3 and 5:1
Output torque: from 2,3 to 170 Nm
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
bevel
|
| Shaft orientation |
right angle
|
| Torque (Nm) |
100 - 200
|
| Applications |
for servo motors
|
