Bevel Buddybox - BBB4 Reducer
Right-Angle Spiral-Bevel Reducers with Cyclo Drive Input
BBB4 - rugged and durable speed reducer.

Ductile iron housing for robust applications
Low maintenance and easy to operate
Highest reliability and durable design
High efficiency, with all components made of high quality steel, hardened and ground

Technical Info

Input - Motor adaptor or free input shaft
Output - Shrink Disc, Taper-Grip Bushing, Solid Shaft, Keyed Hollow Bore
Mounting - Shaft Mount on Hollow Shaft, Foot, Flange
Sizes - 6 frame sizes (A-F), 48 to 1.059 kg
Ratios - 11:1 to 26.000:1 and greater
Motor Standards - Global standards

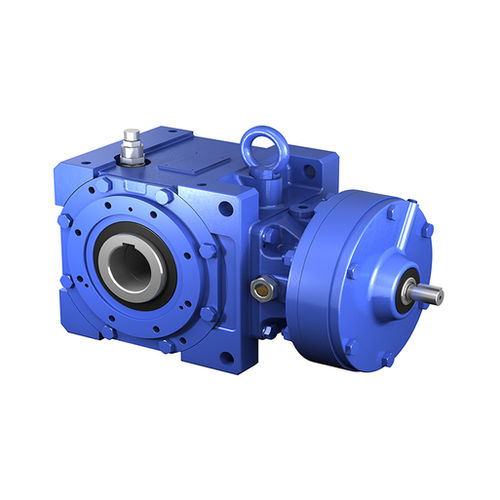

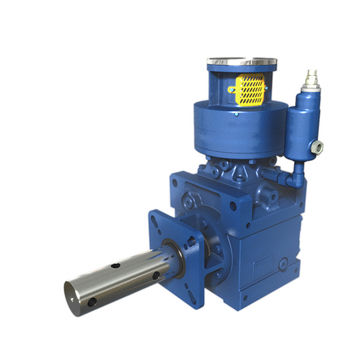

Bevel Buddybox - BBB4

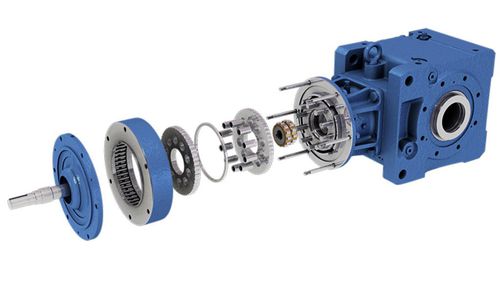

The BBB4 gearmotor combines the strength and flexibility of the Cyclo Drive gear reducer and a single stage right angle spiral bevel gear stage in a rugged right-angle gearbox design. Its unique design combines performance with outstanding quality and reliabilty. Is is an excellent choice for applications in many industries including material handling & logistics, steel, chemical, waste water treatment, mining industries and operates savely in harsh and generally unattended ambient.

Parameter Name	Parameter Value
Type	bevel spiral bevel
Shaft orientation	right angle
Torque (Nm)	10000 - 10000
Applications	shaft
Other characteristics	rugged
Power (W)	100 - 75000
