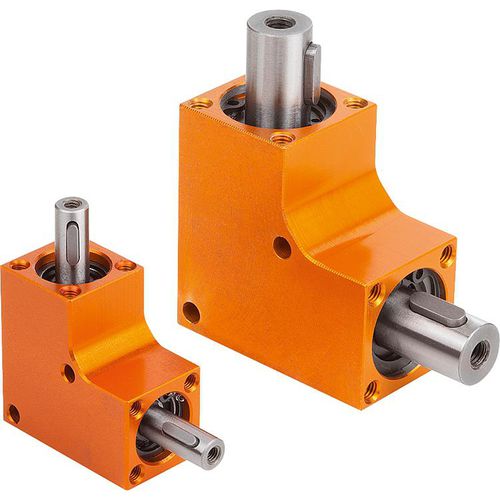

Bevel gears

Material:
Housing aluminium.
Bevel gears steel.

Version:
Housing anodized.
Bevel gears surface hardened.
Ball bearing with rubber sealing washer RS.

Note:
Universally applicable and maintenance-free bevel gear in seven different sizes with the ratio 1:1. The housing is sealed to prevent grease leakage and keep dust out. Can be mounted in any position. The rotation direction is arbitrary.

- smooth power transmission
- simple screw fastening
- quiet

Technical data:
Duty cycle: 20% (at 5 min.)
Service life: ca. 1000 hours (at full load, speed 500 rpm and duty cycle 20%)

Temperature range:
-20 °C to +60 °C.

Note:
FR permissible radial force at FA=0
FA permissible axial force at FR=0

Parameter Name	Parameter Value
Type	bevel
Shaft orientation	right angle
Torque (Nm)	1 - 5 5 - 10 10 - 20 20 - 50
Performance	high-precision low-noise
Applications	transmission
Other characteristics	industrial aluminum universal
Rotational speed (rpm)	100 - 1000
