Bevel gearbox at 90° on Type 309 manual tables

Gear ratio 1:1

Orientation on front side or lateral side

With or without handwheel, knob, indicator

Adaptation on tables with hexagonal shaft output
This option is suitable for manual leadscrew table Type 309* in size 3 and size 4 (models 309 L/M/N/P/R/S).

It allows the handwheel to be oriented at 90° in relation to the axis of the table to facilitate access if it’s restricted.

Gear ratio: 1:1
Max. driving torque: 4 Nm

To allow mounting of the bevel gearbox on tables 309*3 and 309*4, the tables must be with a 7 mm hexagonal shaft output (with the suffix /SAX7 after the order no.).

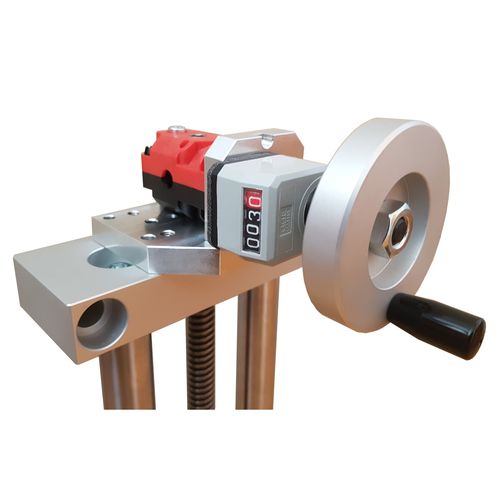

Bevel gearbox orientable on 4 sides
Different possibilities are offered to meet different uses :

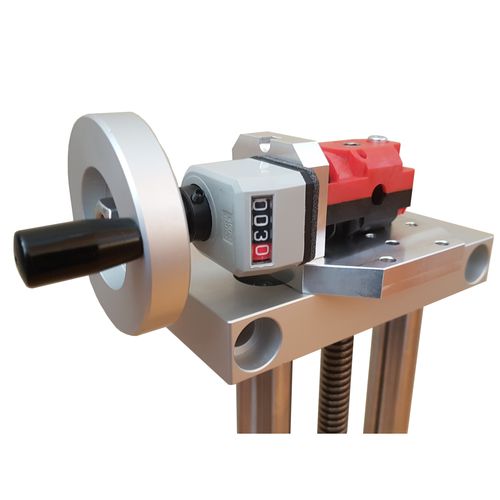

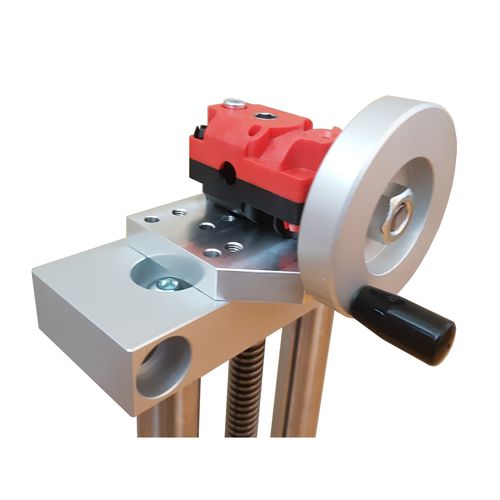

– Orientation towards the front side or the lateral side

– With removable or irremovable handwheel (or grip knob)

– With (or without) positioning indicator, rotatable at 0°, 90° or 180° and 2 viewing directions

Bevel gearbox to connect 2 parallel tables

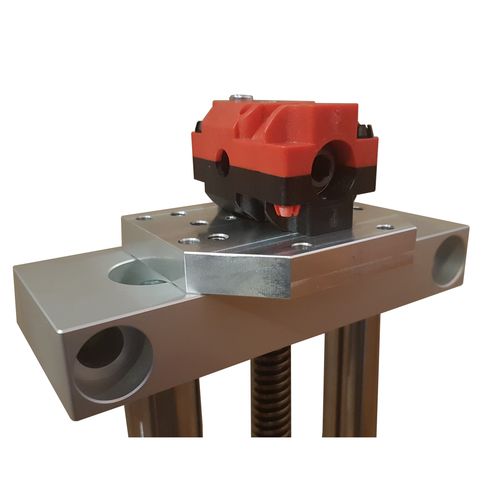

It’s also possible to use the transmission alone (without operating element) to connect 2 tables with a hexagonal bar.

Composition of the complete order no. for a table with gearbox
For a leadscrew table size 4 stroke 400 mm on bronze bearings and a bevel gearbox on front side with hanwheel and standard indicator:
309L4200/SAX7/RA7221

Parameter Name	Parameter Value
Technology	bevel
Configuration	90°
