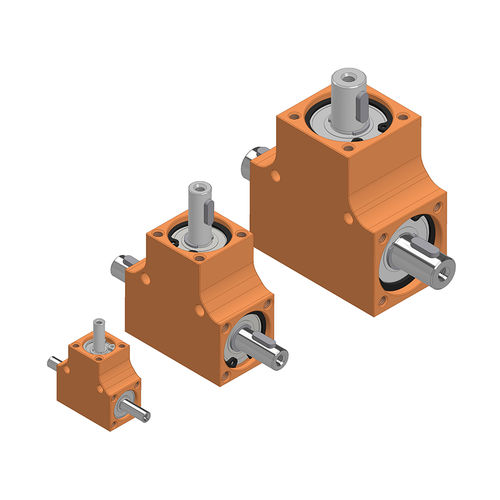

Angular gear Ket-Bee 200X T-Gearbox

A bevel gearbox family with through shaft consisting of 8 sizes for versatile use as an angular gearbox. The gearbox is characterised by a compact design with maximum torque, sturdiness and smooth power transmission. The uncom- plicated mounting is made possible by a simple screw fixing.

Maintenance-free and silent running
Steel bevel wheels, case-hardened
Aluminium housing, anodized
Ratio 1:1
Permitted operating temp. -20°C to +60°C
Backlash at drive shaft 3° ± 1°
Duty cycle 20 % at 5 min (1 min ON, 4 min OFF)
Lifetime of 1000 hours with:
- full load and
- input speed of 500 rpm and
- duty cycle 20% with 5 min

Parameter Name	Parameter Value
Technology	bevel
Configuration	90° outgoing shaft
Material	aluminum
Other characteristics	compact maintenance-free low-noise
