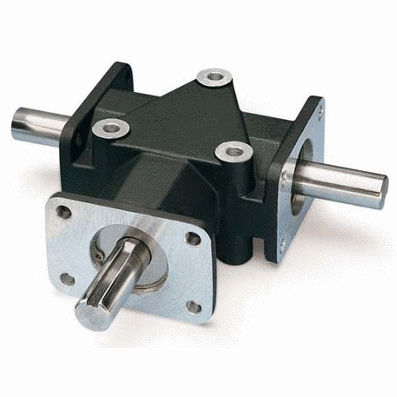

Three-Way Right Angle Gearboxes feature one input shaft and two output shafts, providing an easy 90-degree turn of power transmission. This design allows for changes in axis rotation along with a smooth transfer of power with minimal backlash.

Crown Gear three-way right angle gearboxes from Zero-Max, Inc. feature quiet operating spiral bevel gears for dependable transfer of speed or power and a long, maintenance-free operating life. Our premium gearmotors feature hardened AGMA Class 10 spiral bevel gears and non-magnetic stainless steel shafts, standard. Right angle gearboxes come in 1:1 and 2:1 ratios and a wide range of shaft styles to handle most applications.

High-Quality Three-Way Gearbox Construction
Crown Gear three-way right angle gearboxes are engineered for dependability and long-lasting performance. The fully enclosed cast aluminum housing offers maximum strength and heat dissipation and protects internal gears from misalignment, jam-ups, and contamination. Additional right angle bevel gearbox features include:

Compact, enclosed speed reducer design
Low noise, smooth transfer of power
High quality, AGMA Class 10 spiral bevel gears
Non-magnetic stainless-steel shafts
Permanently lubricated; no maintenance
Low backlash operation
1 input, 2 output shafts
Counter-rotating versions available
IP65 Nickel-Plated versions available

Bevel Speed Reducer Drive Options
Three-way right angle speed reducers come in 1:1 and 2:1 ratios and shaft diameters up to 1 inch. The following alternative shaft options are available for quote:

Squared
Splined
Extended
Shortened
Stepped

Parameter Name	Parameter Value
Technology	bevel spiral bevel
Configuration	right angle
Material	steel
