Deflection gear 3045

Bevel gearbox for the deflection of a rotary movement at an angle of 90°. The gearbox can be supplied both with a hexagonal axle with a specific length or without an axle. Simple mounting is made possible by a flexible screw fixing.

Special features
Maintenance-free

Case-hardened steel bevel wheels
Synthetic gear housing

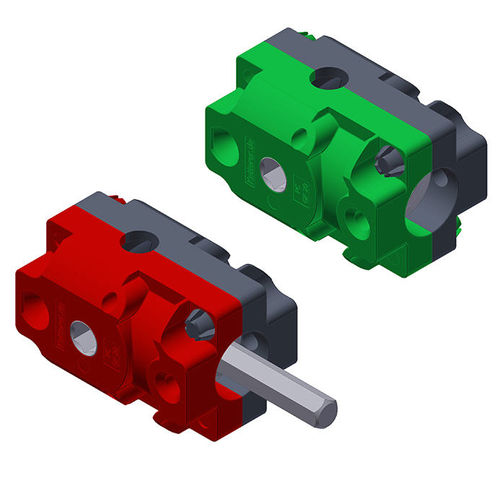

Ratio 1 : 1 (red-black) and 2 : 1 (green-black)
Suitable for both manual and electric motor drives

Parameter Name	Parameter Value
Technology	bevel
Configuration	90°
Material	steel
