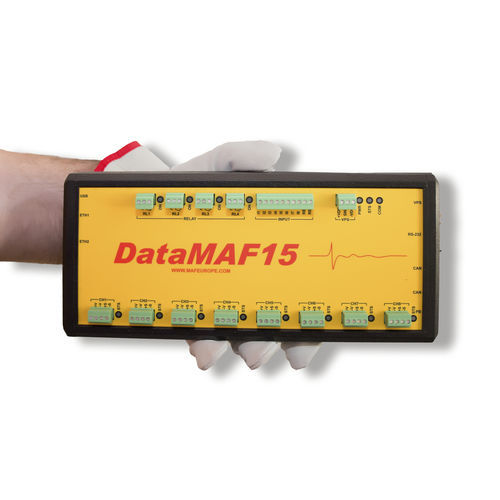

DATAMAF15 DATA ACQUISITION SYSTEM
8 ANALOG SYNCHRONOUS INPUTS (HI RESOLUTION AND SAMPLE RATE) – 8DIGITAL INPUTS – 4 RELAYS OUTPUTS – CAN – ETHERNET, USB TRANSMISSION – DATA NET - SOFTWARE UTILITY FOR PC – EASY TO USE
Complete system: software + hardware.Easy to use and troubleshoot (check-up function, log of modifications, reset to factory settings, firmware re-programming, configuration file save function). Compact.DATA2LOG data acquisition software utility for computer (parameter setting, visualization, data acquisition, troubleshooting), iti is included without need to purchase a user’s license (=cost saving). Calibration procedure with up 10 calibration points for high accuracy.Data acquisition net: several data loggers can be connected to a single computer.SD card: included 8GB internal memory. Power supply: 10-30Vdc.
INPUTS/OUTPUTS:

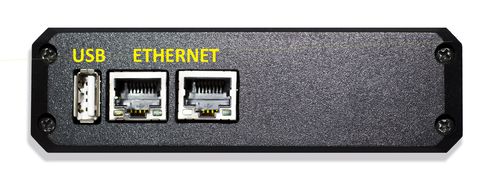

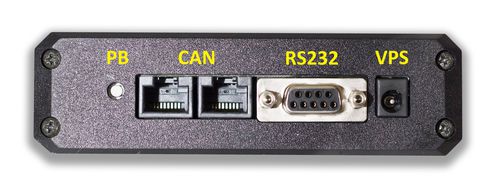

8 analog inputs: synchronous high resolution (23bit +1bit sign max.) and sampling frequency (1 to100kHz max.).Type of signal (without any additional external hardware): ±100mV, +5V, ±5V, +10V, ±10V, 4-20mA, 0-20mA, 12±8mA, Potentiometer 100kΩ. CAN net acquisition.8 digital inputs: triggers for synchronization and function activation.4 relays outputs for application control.USB and Ethernet digital transmission.
HOW CAN IT BE USED:
Slow and fast phenomena and unmanned acquisitions: acquired data is stored in internal memory, it creates an Excel data file on computer.

Parameter Name	Parameter Value
Mounting	benchtop
Options and accessories	Ethernet USB multi-channel high-speed analog input high-resolution all-in-one multifunction with USB interface digital
