Description and Application

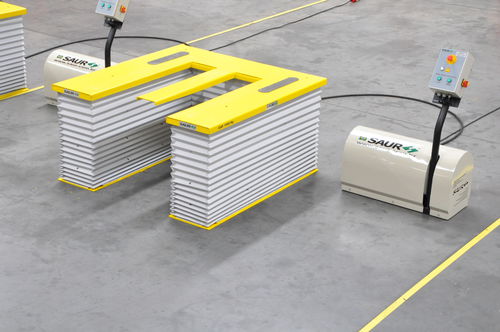

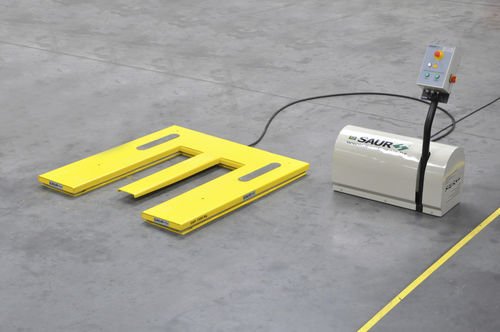

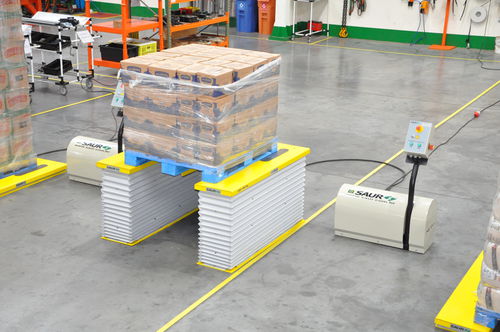

The Extra Low Lifting Platform or Extra Low Lifting Table aims to improve the work ergonomics of the professionals involved with the load stacking.
This model does not need a ditch, but it may be mounted onto the floor, and the load may be placed and removed with pallet trucks or forklifts.

Specifications
• - Lifting capacity of 1500 kg;
• - Approximate lowered height of 85 mm;
• - Approximate extended height of 780 mm;
• - Protective bellows included; Its hydraulic unit has a command board on a stand or it may be started by an electric switch;
• - Adequacy to regulatory standards on safety (NR10,12) regarding the items that apply;
• - Available in version for frozen loads and aggressive environments.

Parameter Name	Parameter Value
Technology	bellows
Operation	hydraulic
Type	stationary
Capacity	1,500 kg (3,306.9 lb)
Lowered height	85 mm (3 in)
Lifting height	780 mm (31 in)
