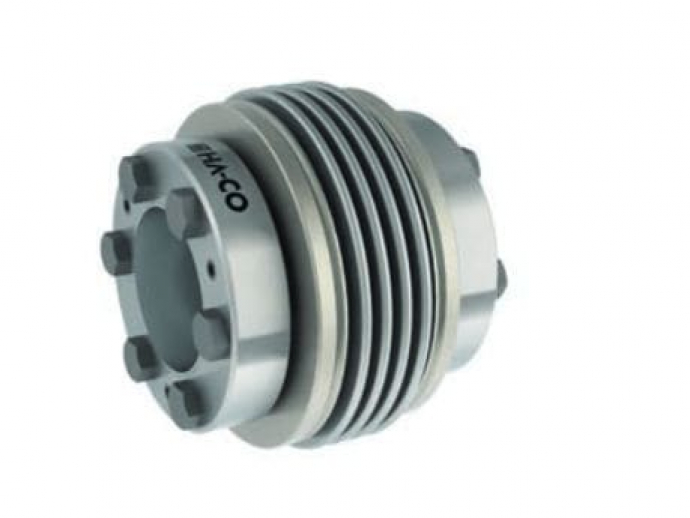

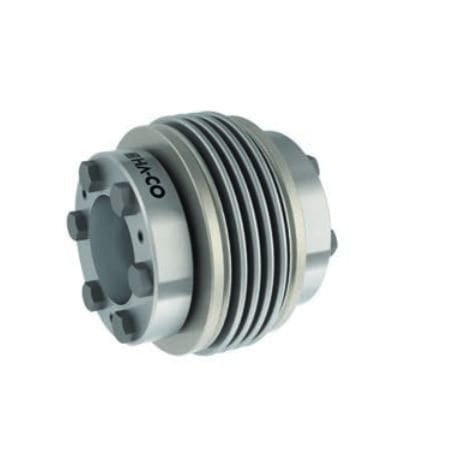

If a radial screw connection is not possible for space reasons, the MKK-S metal bellow coupling is the best choice. It is equipped with a clamping cone which is clamped from the front. The rotationally symmetrical design minimizes imbalances. This makes this coupling ideal for applications with very high speeds up to 120,000 rpm. Suitable for larger applications from 15 to 500Nm. The hubs are made of steel and welded to the metal bellow.

Shaft diameter up to 60 mm
With clamping cone, short installation length

Features

• Very low mass moment of inertia
• Short installation length
• Maintenance-free
• Balanced
• Backlash-free
• Compensation of alignment mistakes

Material of hubs: Steel
Material of bellows: Stainless steel
Connection bellow-hub: Welded

Parameter Name	Parameter Value
Type	bellows
Product applications	shaft
Torque (Nm)	15 - 500
