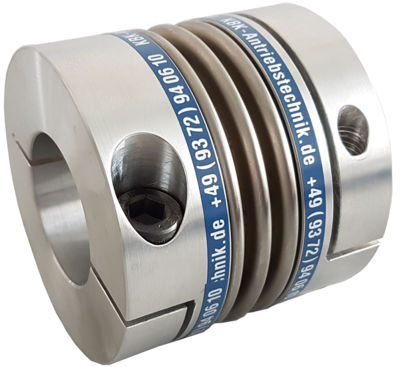

Metal Bellows Coupling with collet clamps
• Backlash-free metal bellows coupling with clamp hubs
• Hub material: up to 60Nm – aluminum, up from 80Nm - steel
• For shaft diameters from 10 – 80 mm
• High torsional stiffness, compensation of shaft misalignment at low restoring forces
• Easy to assemble
• Perfect bellows coupling for connecting servo motors, e.g. in machine tools, automation techniques, packing machines, wood working machines
• Torque range: 18 – 1400 Nm
Metal Bellows Coupling with collet clamps / Hub material: aluminum
• Backlash-free metal bellows coupling with clamp hubs
• Hub material: aluminum
• Alternatively to steel executions we recommend our series KB4AL from size 80 - 500
• For shaft diameters from 10 – 70 mm
• High torsional stiffness, compensation of shaft misalignment at low restoring forces
• Easy assembly and low inertia
• Perfect bellows coupling for connecting servo motors, e.g. in machine tools, automation techniques, packing machines, wood working machines
• Torque range: 18 – 500 Nm
Metal Bellows Coupling with collet clamps, compact
• Backlash-free metal bellows coupling with compact clamp hubs
• For shaft diameters from 10 – 70 mm
• High torsional stiffness, compensation of shaft misalignment at low restoring forces
• Perfect bellows coupling for connecting servo motors, e.g. in machine tools, automation techniques, packing machines, wood working machines
• Torque range: 18 – 1400 Nm

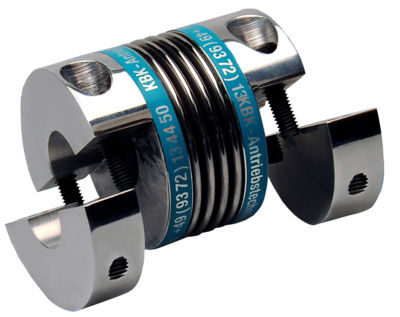

Metal Bellows Coupling with split hubs
• Backlash-free metal bellows coupling with split hubs
• For shaft diameters from 10 – 80 mm
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
bellows
|
| Product applications |
for shaft
|
| Other characteristics |
|
| Torque (Nm) |
|
