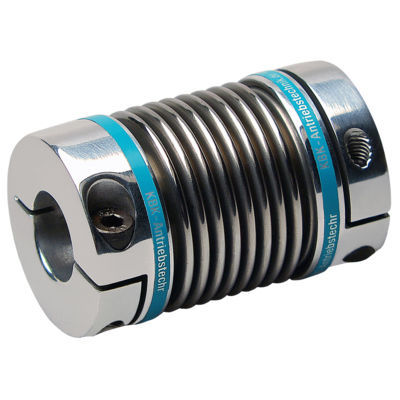

Miniature Metal Bellows Coupling with collet clamps
• Backlash-free miniature metal bellows coupling with clamp hubs
• For shaft diameters from 1 – 25mm
• High torsional stiffness, compensation of shaft misalignment at low restoring forces
• Easy assembly with friction-locked clamp hubs
• Perfect bellows coupling for encoders, tachometers, potentiometers, servo drives, NC axis, stepper motors
• Torque range: 0,1 – 10Nm

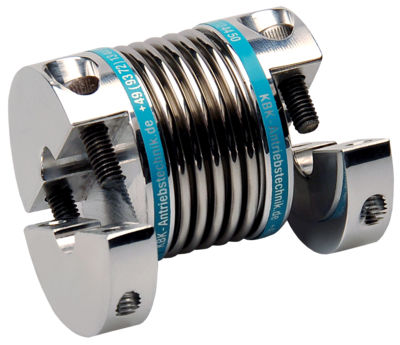

Miniature Metal Bellows Coupling with split hubs
• Backlash-free miniature metal bellows coupling with split hubs
• For shaft diameters from 3 – 25 mm
• High torsional stiffness, compensation of shaft misalignment at low restoring forces
• Radial assembly! Due to the split hub design shafts can be mounted and adjusted before the assembly of the coupling
• Perfect bellows coupling for servo drives, e.g. in testing equipment, automation techniques, packing machines,
• Torque range: 0,5 – 10 Nm

Miniature Metal Bellows Coupling axial pluggable, with collet clamps
• Backlash-free miniature metal bellows coupling with clamp hubs
• For shaft diameter from 3 – 25 mm
• High torsional stiffness, compensation of shaft misalignment at low restoring forces
• Easy assembly with friction-locked clamp hubs
• Perfect bellows coupling for encoders, tachometers, potentiometers, servo drives, NC axis, stepper motors
• Torque range: 0,5 – 10 Nm
• Axial pluggable

Parameter Name	Parameter Value
Type	bellows
Product applications	for shaft for encoders
Other characteristics	backlash-free miniature metal bellows with clamp
Torque (Nm)	0.1 - 10
Rotational speed (rpm)	0 - 15000
