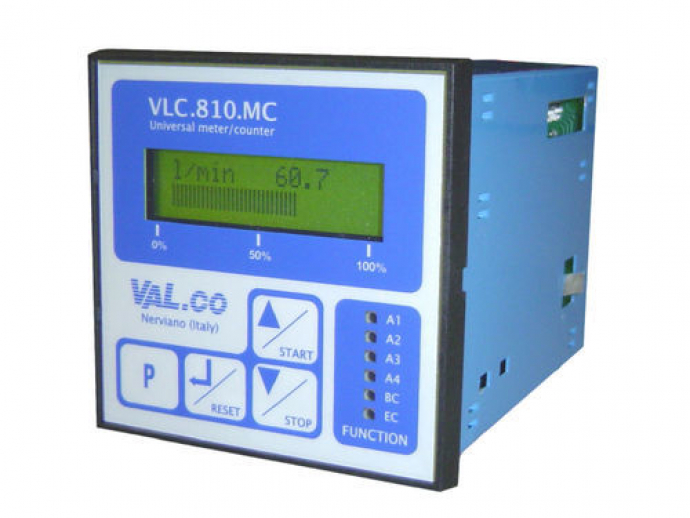

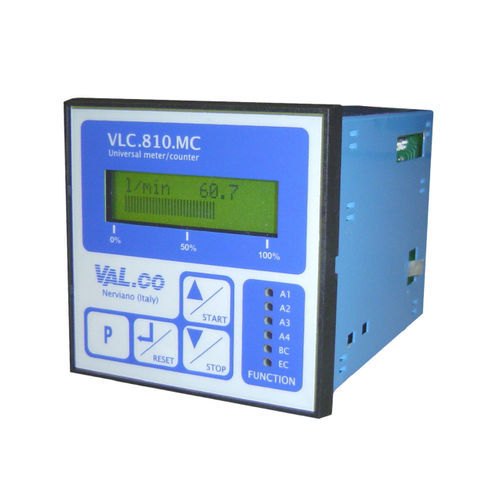

The Universal counter VLC.810.MC combines, in a single unit, all functions of the signal processor VLC.602.M with an advanced section of counting, specially designed for the sensors with frequency output.

The instrument can perform counts and measurements of the flow rates at the same time.

The standard input signals of this universal processor are 0-5V, 0-10V, 0-20mA, 4-20mA, Potentiometric 500 to 20KΩ, pulses and frequency for batch counts.

And it is possible to represent on the display two simultaneous indications, both digital and analog (bar-graph) expressed in the most common engineering units.

The measured value can be transmitted to remote data acquisition systems and it is also possible the linearization of signals from sensors with a non-linear transfer function. All programming parameters can be set via the front keyboard and are stored in a nonvolatile memory to avoid the loss of data.

• Programmable measuring units and range.
• Frequency and pulses input.
• Input/output signals: (0)4  20mA , 0  5V, 0  10V
• Up to 6 alarm thresholds with LED indication

Parameter Name	Parameter Value
Type	batch
Display	digital analog
Technology	electronic
Communication	RS-232 4-20 mA
Protection level	IP40
Other characteristics	programmable DIN rail
