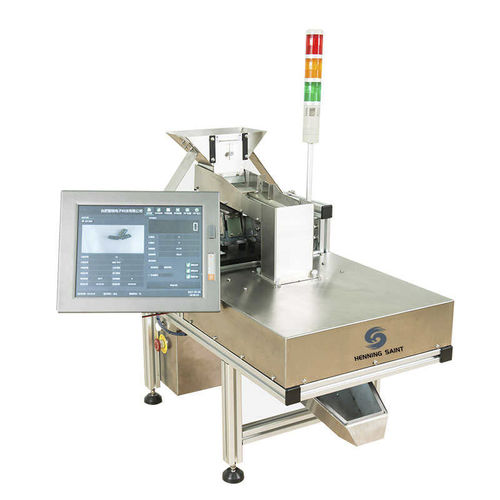

AHST vision counter for corn seeds adopts high-speed CCD image technology, which can accurately count corn seeds.It can work with the packaging machine to achieve low-cost and high-efficiency production.

Working principle of vision counters
HS-VB80 corn seeds vision counters with high-speed industrial line array camera, when the material falls through the camera recognition area, the line array camera through high-speed scanning, accurately capture the material falling attitude, shape and other information, and upload to the processing center, through the processing center powerful algorithm real-time analysis and processing, accurate calculation of the number of materials to achieve real-time counting function.

Advantage Features
1.High accuracy of counting
●High speed array camera can realize continuous uninterrupted scanning imaging, accurate identification count.
●Advanced large capacity FPGA processing and control system, response time at 1 nanosecond.
●Optimized algorithm software effectively identifies overlapping objects and micro impurity.
●intelligent feeding system to ensure the subcontracting accuracy.
●Insensitive to dust.

2.High efficiency of counting
●Using large track instead of narrow track to scan falling objects greatly improves the counting efficiency.
●Increase cache storage room to improve efficiency.

3.Patented self-learning technology can achieve to count different objects easily
Through the learning mode,the data of various falling posture of the materials are automatically obtained,and the accuracy of the parameters is checked by the verification mode. If there is an error, the parameters can be fine-adjusted manually.

Parameter Name	Parameter Value
Type	batch
Display	digital
Technology	camera
Applications	industrial for the food industry
Other characteristics	high-speed
