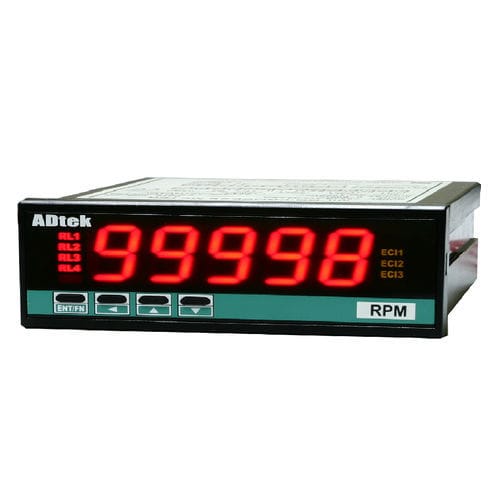

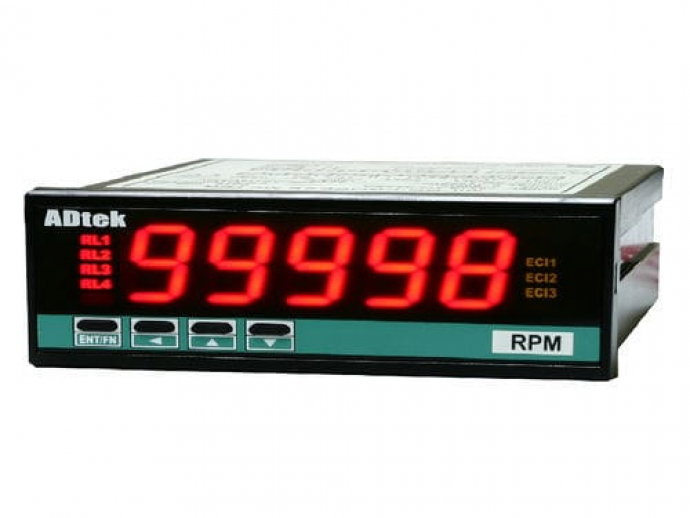

5 Digits Multifunction Counter (Pulse Input) (96x48mm)

The CS2-CT provides high speed and multifunction, counting, control and communication (Modbus RTU mode) of Pulse from flow meter or encoder, proximity switch, photo switch for length control.

There are 3 external control input (DI) in standard and the optional 4 Relay, 1 Analogue,and RS485 port available. They are also support N, R, C mode for totalizer control.

Summary of specifications:
● Measuring Pulse 0.01Hz~20KHz(optional: over 20KHz~50KHz); Contact / NPN / PNP / Voltage Pulse can be switch on rear of meter
● 4 banks pre-set for all relay functions relative 4 difference application, and selectable by 3 External Control
● Inputs(E.C.I.) or front key in optional
● 4 relay can be individual programmed for N/R/C mode and energized time.
● 3 external control input can be individual programmed for Reset, Gat
● Analogue Output and RS485(Modbus RTU mode) available in option
● Comply to CE standard & RoHS

Parameter Name	Parameter Value
Type	batch
Display	digital
Communication	RS485 Modbus analog output with pulse output
Other characteristics	panel-mount
