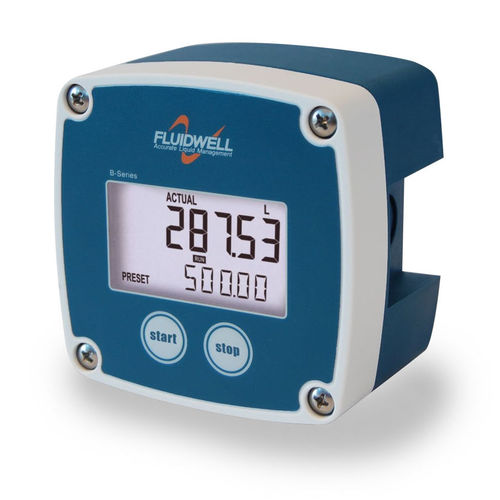

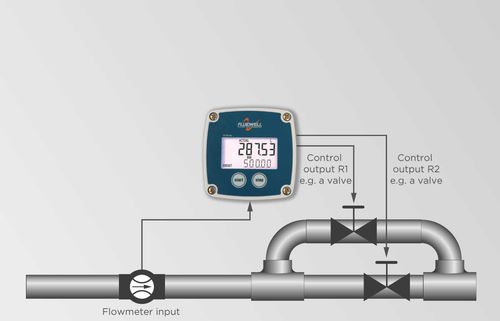

The B-In-Control is a basic batch controller with two valve control outputs, offering exactly what is required for many applications. The operator can enter a batch quantity easily or execute repeating batches. During the batch, the preset value is displayed as well as the batched (actual) quantity and the units of measurement. The automatic self-learning overrun correction ensures an accurate result after every batch.

Advantages
- The B-Series is our most cost effective display but with all the benefits you may expect from a Fluidwell product: It’s durable, reliable and very easy to operate. Basic with a capital B!
- Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.

Features
- Compact design.
- Displays preset value and running batch value simultaneously, total and accumulated total.
- Self-learning overrun correction.
- Durable IP65 (Type4) field, wall or meter mount enclosure.
- One 20mm and two 16mm knock-out hole cable entries.
- “Know one, know them all” configuration structure.
- Easy reading and programming with clear alphanumerical display.
- Clear 12mm(0.5”) numeric digits and 7mm(0.3”) alphanumeric digits.
- Bright LED backlight.
- Auto backup of settings and running totals.
- Lithium AA battery and 10 - 30V DC power supply.
- Sensor supply: 8.2V DC.

Applications
- For basic batching, from small up to very large quantities. Just a simple single batch or repeating similar batches.
- The B-series offers you an economical solution for common industrial applications. Nothing more, nothing less.

Parameter Name	Parameter Value
