• 640(H) x 480 (V) Pixels
• Support 4 mil resolution
• Scan Rate 120fps
• Field of View: Horizontal: 28°; Vertical: 36°

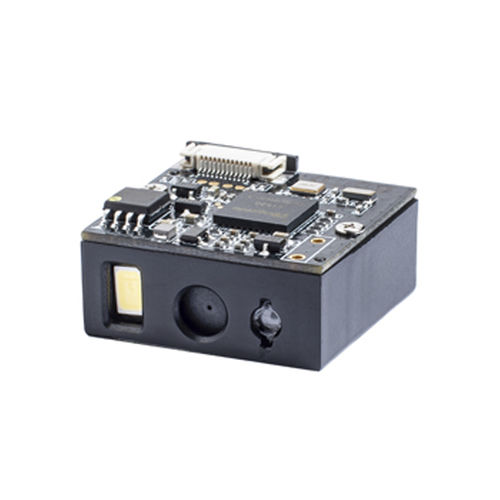

SE-3130 is a barcode scan engine which has powerful reading performance. Its small form factor can be integrated into various vending machines, barcode scanners or kiosks. With this scan engine you can reliably and consistently scan barcodes up to 18 cm.

General
Interface: USB-KB / USB-COM / RS-232

Barcodes supported (1D): All UPC/EAN/JAN, Code 39, Code 39 full ASCII, Code 32 / Italian Pharmacode, Code 128, CODABAR, Interleaved 2 of 5, MSI, Code 93, GS1 DataBAR 14, GS1 DataBar Expanded, GS1 Expanded Stacked, GS1 Data Bar Limited, GS1 Composite Component A/B/C

Barcodes supported (2D): PDF 417, Micro PDF 417, DataMatrix, QR Code, Micro QR Code, Aztec, Maxicode, Dot Code

Optical
Optical sensor: 640(H) x 480 (V) Pixels

Light Source: 610 nm RED LED / White LED 6000- 6,500K

Resolution: 4 mil (Code 39), 6.6 mil (DataMatrix)

Depth of Field: Code 39 50 mm - 100 mm (4mil)
QR Code 45 mm - 110 mm (20mil)

Scan rate: 120 fps

Field of View: Horizontal: 28°; Vertical: 36°

PCS: 30%

Electrical
Voltage: 3.3V - 5 V

Scanning Current: 260 mA

Standby Current: 88 mA

Environment
Operating temperature: 0℃ to 40℃ (32℉ to 104℉)

Storage Temperature :-40℃ to 70℃ (-40℉ to 158℉)

Operating Humidity: 10 to 95% RH (Non-condensing)

Storage Humidity: 10% - 85% RH (Non-condensing)

Ambient Light: 0~100000 lux (direct sunlight)

Physical
Weight: 5g

Dimensions: 26(W) x20(D) x13(H)mm

Cable: FPC Cable: 12Pin Pitch 0.5

Warranty: 1 year
