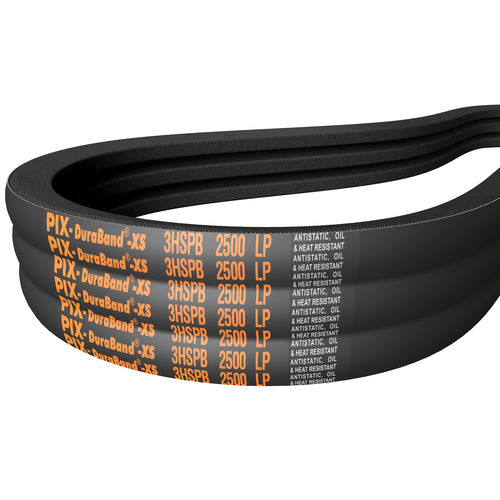

Banded power transmission belt PIX-DuraBand®-XS

Banded power transmission belt PIX-DuraBand®-XS

Banded power transmission belt PIX-DuraBand®-XS

About


Features
Enhanced power transmission capacity up to 25%, compared to standard Belts
Lesser number of Belts is required as compared to multiple single-belt drive system
Extended service life
Top curvature provides superior adhesion and accelerates heat dissipation rate
Controlled radial and lateral run-out facilitates smooth operation
Anti-static, oil and heat resistant
ATEX certified FRAS Belts are also available
Temperature range:-30°C to +80°C


Constructional Details
Special Curved top tie band design for better flexibility and heat resistance
High modulus - low shrinkage tension member embedded cushion rubber compound
High tenacity, low stretch specially treated polyester cord
Specially designed compression rubber gives stability to the Belt cross-section and supports the cord zone against deflection, under load condition
Wear-resistant, bias-cut neoprene rubberized polyester cotton fabric



PARAMETERS

Parameter Name Parameter Value
Type
  • ribbed
  • V
Material
rubber
Product applications
  • for heavy-duty applications
  • agricultural
  • for pumps
  • for presses
  • for generator sets
  • for harvesters
  • for rotors
  • for hot rolling mills
Sector
industrial, for the automotive industry, for the food industry, for the medical industry
Other characteristics
  • anti-static
  • high-performance
  • high-power
  • wrapped
  • for heavy loads
  • aramide-corded
  • banded
  • oil-resistant
  • heat-resistant
  • ATEX
Length (mm)
838 - 23629
Width (mm)
13 - 25.4
Thickness
Min.: 10.5 mm (0.41 in)Max.: 25 mm (0.98 in)
Pitch
Min.: 15.9 mm (0.63 in)Max.: 28.6 mm (1.13 in)
Temperature
Min.: -30 °C (-22 °F)Max.: 80 °C (176 °F)
