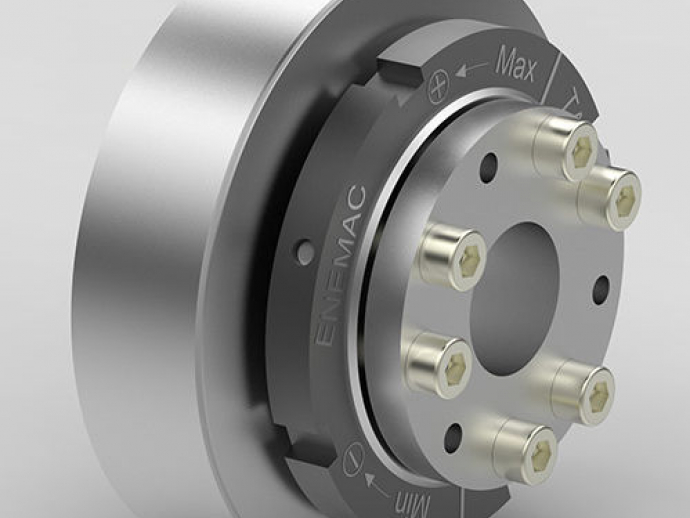

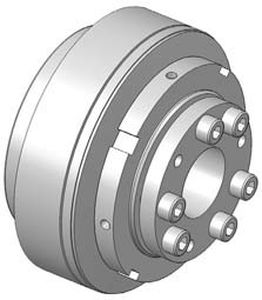

Torques
0,5–470 Nm
Properties
with integrated ball bearing
successfull standard torque limiter
Applications/Specific features
toothed belt drives
the drive element does not need its own bearing on the shaft
shaft connection with conical hub (or keyway)

• for indirect drives, with integrated ball bearing
• with conical bushing or keyway
• for high radial load, compact performance

Parameter Name	Parameter Value
Operation	ball, friction
Other characteristics	compact
Torque (Nm)	0.5 - 470
Diameter (mm)	6 - 54
Rotational speed (rpm)	2000 - 3000
