Technical Feature

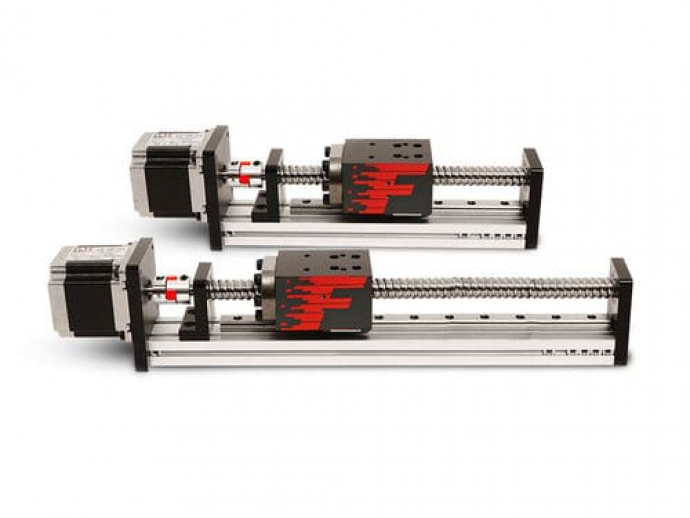

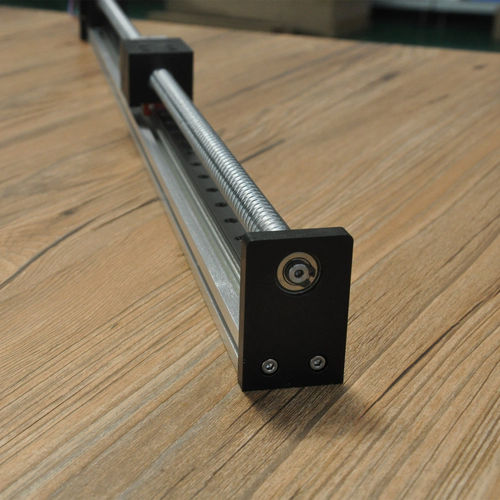

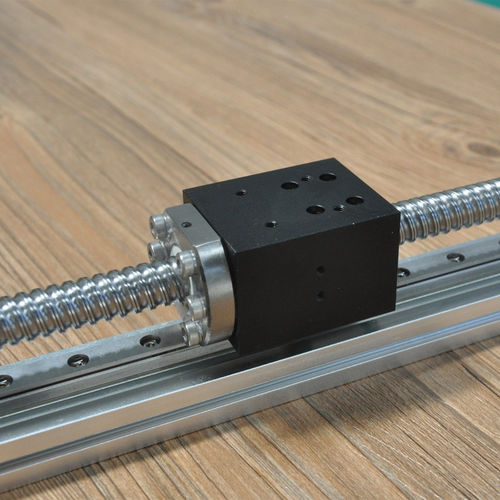

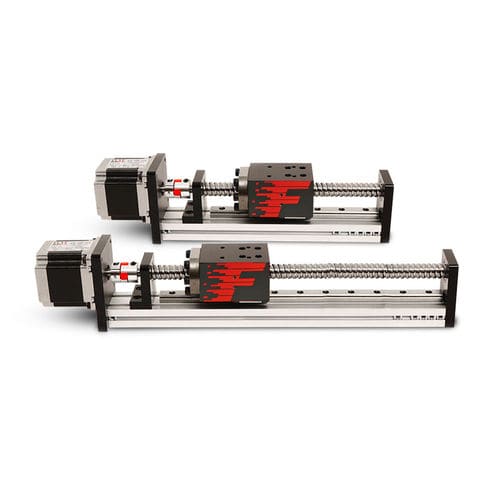

FSK40 linear guide is semi-sealer structure, body width 40mm, high stability,compact structure,versatility feature, suitable for normal working environment, it is convenient to use single axis or multi-axis to assemble easy functional usage robotic arms for kinds of industries.

Range of Application

Precise positioning, dispensing, spray painting, visual inspection, moving, grabbing, cutting and welding, automatic assembly, automatic locking screws, palletizing, etc. Such as: PCB board detection, optical disc stacking device, parts pick and place.


Series: FSK40
Stroke Range: 50mm~1000mm
Position Accuracy: 0.03mm
Max Speed: 255mm/s
Max Load: 25kg
Ball Screw: G1204/G1605/G1610

Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, RoHS, ISO9001 Certification.

Huge Variety of Ready-to-Ship Products
Quantity Discounts Starting at 10 pcs
custom OEM Solutions
Value-Added Services

New source, New Price, New Chance.

FUYU Technology is a Linear Robotic Manufacturer and established in 2011.

As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights.

Multi-axis Positioning System can be composed of several linear modules for customized Stroke, Precision, Speed and Load Capacity. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.

As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 12 hours to suggest the best solution for the linear gantry robot.

Parameter Name	Parameter Value
Operation	with servo-motor, linear motor-driven
Type	ball screw
Other characteristics	compact aluminum precision for robots guided vertical horizontal high-speed automatic high-performance for marking
Stroke (mm)	50 - 1000
Speed (mm/s)	40 - 250
Force (N)	98.0665 - 245.16625
