High precision movement, the steady movement, low noise, high speed
High performance spheroidal cast iron grooved housing or stainless steel (customized)
Patented rectangle protection tube prevent screw from rotating
Synchronous-Mechanical system
Safety nut designed to monitor abrasion of product
Available for various motor and gearmotors
Load capacity range from 500kg to 30tons

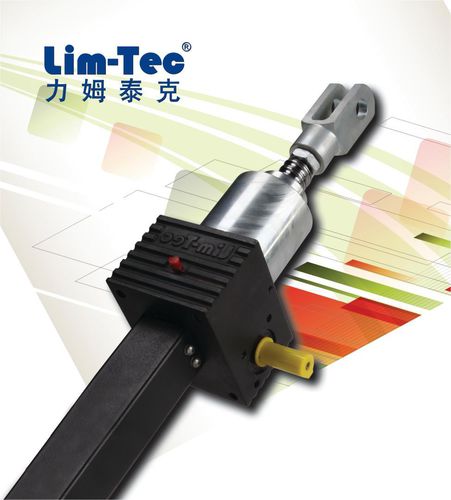

Travelling Screw SJB - S
S-type screw jack is that the worm shaft driven worm wheel rotates, the middle of the worm wheel is the inner thread-hole mechanism (engaged with the screw), and then the rotation motion is transmitted to the straight-line movement up and down the screw.
Modular combination enriches the combination of product changes, screw jack can directly work with the motor/gear motor. integrated design, providing customers with thousands of choices, specific parameters please consult e local office.
Attachment is complete: dust cover, the tooth space design, safety nut, ball screw, limit switch, safety clutch, over load clutch-potentiometer, encoder, brake, hand, installation accessories, etc.

Parameter Name	Parameter Value

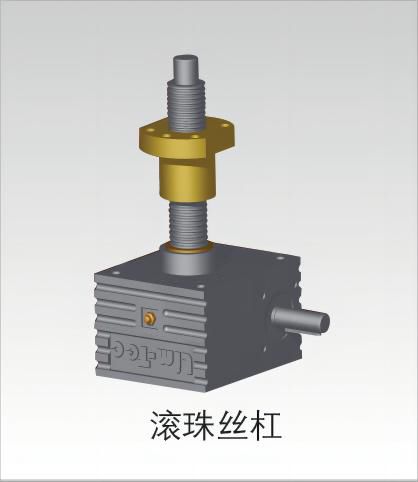

Type	ball screw
Other characteristics	high-performance worm gear flange cast iron
Torque (Nm)	0 - 0
Stroke (mm)	0 - 5000
