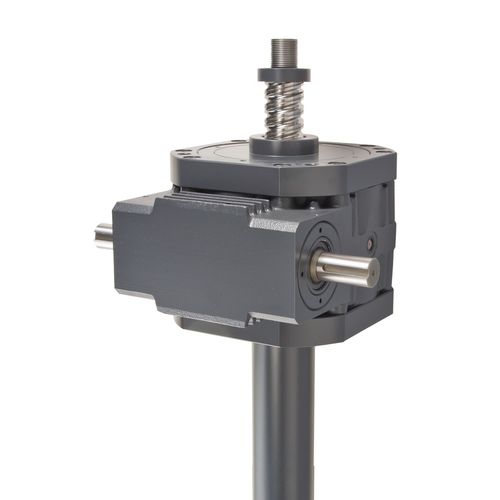

The LiniSpeed Jack is an innovative jack that provides high-speed, high-frequency operations and low-floor specifications.
Achieves high speed operation (maximum 200mm/s) and a maximum 100% ED hourly allowable load rate to help boost equipment productivity.
Available in smaller sizes than previous jacks, despite the increased operation speed. In addition, it enables low-floor specifications thanks to its new design to help contribute to more compact equipment.

・Ultra-high Speed

Conventional jacks could not provide high-speed operation over 120mm/s. Furthermore, the greater the speed, the more you needed to increase the size.
Linispeed Jacks provide a rated thrust that can convey large loads in 200mm/s high-speed operations with no increase in size.

・Lower height and compact design

The Linispeed Jack features a compact design by incorporating the ball nut within the gear case and enables a lower height design by reducing the dead space caused by the nut height. This allows users to lower the overall height of the equipment and create more room for lifting.

Parameter Name	Parameter Value
Type	ball screw
Other characteristics	high-performance nut compact fast high-speed
Stroke (mm)	100 - 1500
