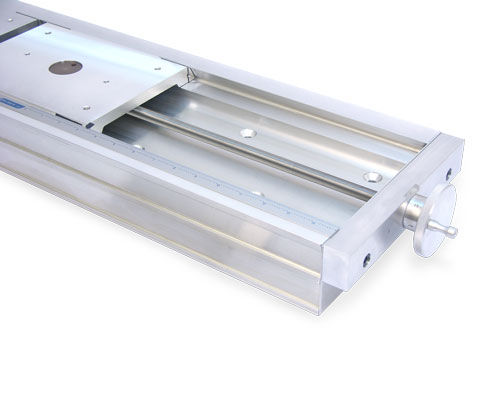

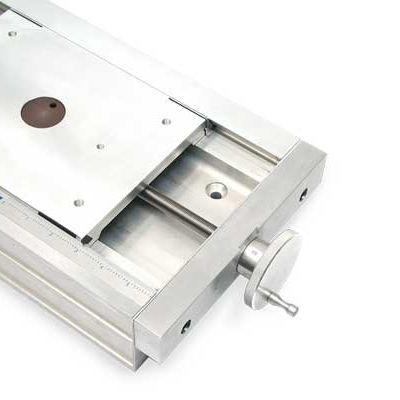

The B90 Series UniSlide stage has a body width of 9 inches, slider length of 9 inches, carrying a 400 lbs. horizontal load. The B90 can travel up to 39" with the 9" slider/carriage. The B90 is ideal where a heavy-duty workhorse is required.

B90 Series UniSlides are comprised of an aluminum alloy extruded dovetail base with 60 degree opposing V-type ways. An aluminum alloy carriage that runs in the dovetail ways of the base. Lead screws are constrained and supported with steel thrust bearings and snap ring retainer. The lead screw drive nut is a tension adjustable nut made of Delrin providing low friction, and minimal backlash.

The B90 Series UniSlide is available in 3 models/styles. Seven lead screw pitches are available.

Parameter Name	Parameter Value
Type	ball bearing
Other characteristics	heavy-duty aluminum
Load (kg)	182 - 182
Working temperature	Max.: 180 °C (356 °F)Min.: 0 °C (32 °F)
