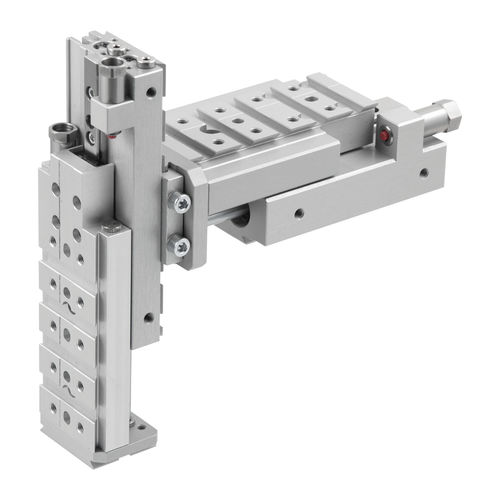

Flat, compact precision slides with two cylinders. The fixed and moving parts are moved by a sturdy ball recirculation carriage running on hardened guides. Elastic mechanical stop or shock absorbers are used to achieve adjustable stop at the end of the stroke. A three-position version is available allowing an intermediate stop. Slots are provided in the body for end-of-stroke sensors.

Quantity per package: 0
Minimum order quantity: 0
Unit of measure: items
Attuatori
Max Speed (m/s): 0,8
Max input pressure (bar): 008
Max temperature (°C): 80
Min input pressure (bar): 02
Min temperature (°C): -10
Product series: Precision slides series S14K
Theoretical thrust (N): 60
Thrust: 46
Version: with mechanical stop

Parameter Name	Parameter Value
Type	ball bearing
Applications	precision
Other characteristics	anodized aluminum aluminum compact stainless steel steel
Stroke (mm)	10 - 200
Working temperature	Max.: 80 °C (176 °F)Min.: -10 °C (14 °F)
Displacement speed	0.8 m/s (2.62 ft/s)
