Encrypted communication and authorised access

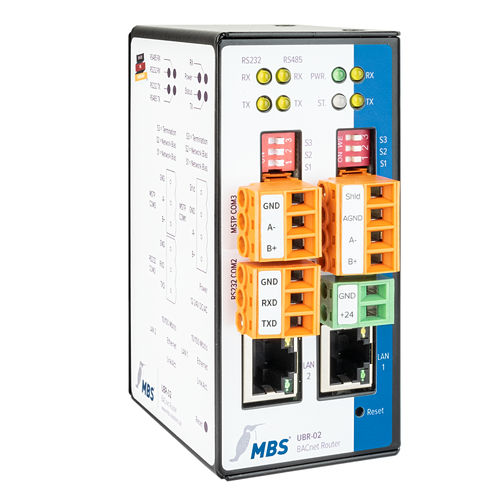

The UBR-02 supports the current BACnet Revision 22 and can therefore be used to build the innovative Secure Connect (BACnet/SC) security structure. It routes between the MS/TP media (RS485), Ethernet and IP, which can be linked to create a common BACnet network. The UBR-02 can also link two separate IP areas with two network connections.

Features:
- BACnet Secure Connect (BACnet/SC)
- BACnet Revision 22
- Encrypted communication (SLL)
- authorized access
- Add-on "BAC-Guard"
- 2 x LAN, 2x RS485 and 1x RS232
- Slave-Proxy Mode
- Auto-Slave-Detection
- ARM9 processor
- integrated Web server for configuration and analysis
- No Moving parts such as fans or similar
- after a power failure of the UBR-01 Router restarts automatically
- Supporting international language packages
- DHCP-Server (Dynamic Host Configuration Protocol)
- Integrated and switchable network and bias resistors

Parameter Name	Parameter Value
Type	data
Network	Ethernet RS232 IP RS485 BACnet
Mounting	DIN rail
