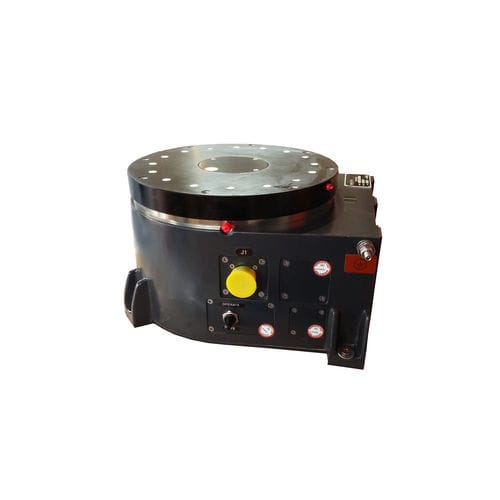

Azimuth positioner MVG-Orbit/FR Legacy series

Azimuth positioner MVG-Orbit/FR Legacy series

Azimuth positioner MVG-Orbit/FR Legacy series

About


The MVG-Orbit/FR Legacy Series Azimuth Positioners provide accurate, balanced rotation, and controllable velocity. Their rugged yet straight-forward construction ensures maximum reliability and trouble-free operation, yielding the best size and weight/performance ratio.

APPLICATIONS
•General Purpose Positioning Subsystems
•Far-Field & Near-Field Antenna Measurements
•Indoor & Outdoor Use (AL-260-1 & Smaller Indoor Only)

•Operating loads up to 2000 lbs (910 kg)
•Turntable Diameters Ranging from 2.6 to 12.6 in (66 to 320 mm)
•Excellent Angular Position Accuracy
•Low Backlash Design
•Precision Bearings
•Closed Loop Servo Control
•Industry-Standard Wiring
•Tachometers/Encoder for Optimum Speed Regulation & Control
•Wide Operating Temperature Range: - 4° F to 140° F (- 20° C to 60° C)
•Fully Enclosed Design of Drive Gear Train & Data Take-Off
•Wide Variety of Available Options



PARAMETERS

Parameter Name Parameter Value
Type
electromagnetic
Orientation
rotary
Product applications
antenna
Other characteristics
  • precision
  • azimuth
Payload (kg)
910 - 910
Rotational speed (rpm)
1 - 3
Weight (kg)
Max.: 65
